In the electric bike industry, lightweight design and minimalist aesthetics have become key trends in product development. The newly launched PXID P5 e-bike employs innovative magnesium alloy casting technology to achieve a seamless, integrated frame, enhancing the overall structural strength while providing an impressive visual and tactile experience. This solution delivers higher-quality urban mobility for the future.
1. Introduction to Magnesium Alloy Casting
Magnesium alloys, with their high strength, low density, and excellent corrosion resistance, are increasingly used in high-end lightweight mobility solutions. Compared to traditional aluminum or steel, magnesium alloy has a density of approximately 1.8 g/cm³—about two-thirds that of aluminum—while maintaining strength comparable to some steels. This allows e-bikes to remain sturdy while significantly reducing total vehicle weight.
Table 1: Performance Comparison of Common Lightweight Materials
|
Material |
Density (g/cm³) |
Tensile Strength (MPa) |
Bending Strength (MPa) |
Forming Method |
| Steel | 7.85 | 400–550 | 600–800 | Welding/Stamping |
| Aluminum Alloy | 2.70 | 200–400 | 250–500 | Casting/Welding |
| Magnesium Alloy | 1.80 | 180–320 | 200–350 | Casting |
Source: AZoM Magnesium Alloy Properties

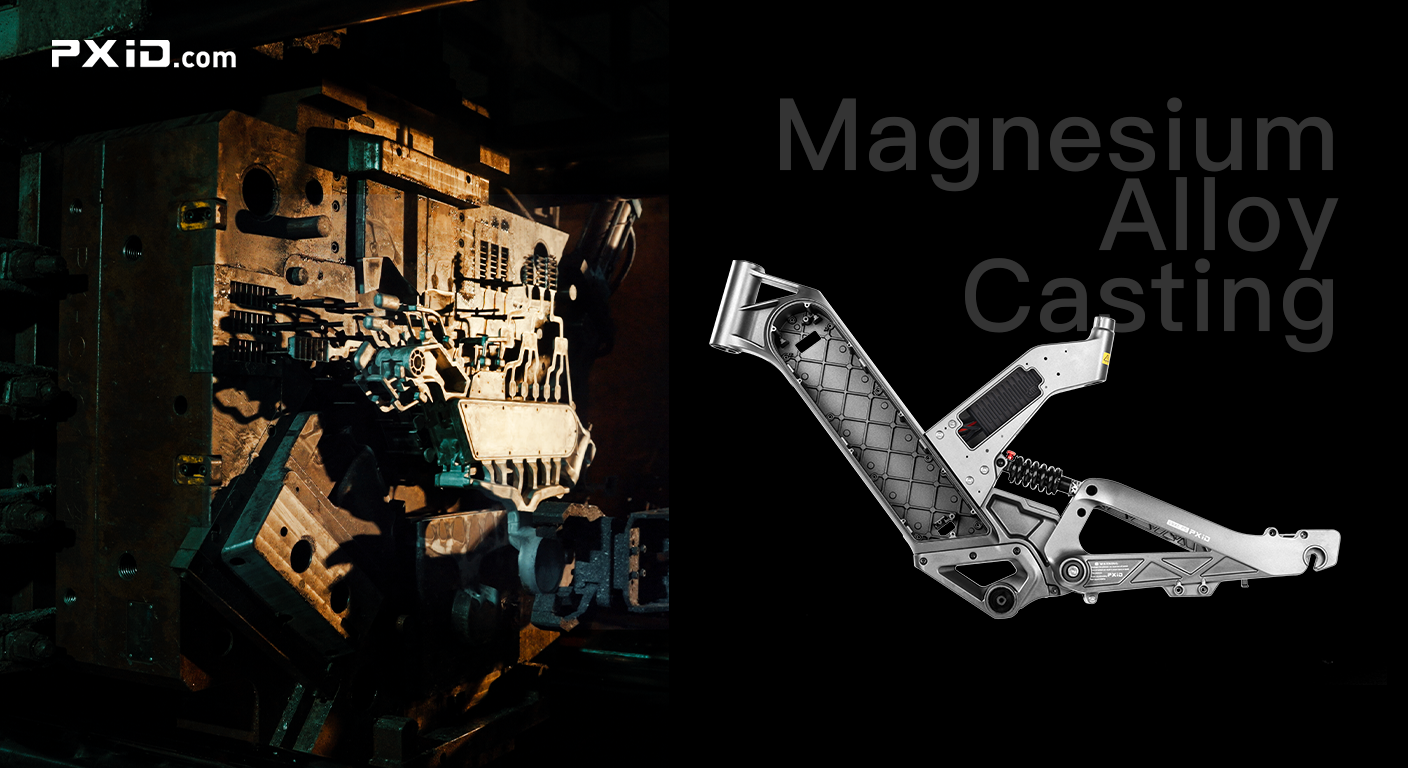

The PXID P5 frame uses high-pressure magnesium alloy casting, injecting molten magnesium into complex molds for one-piece formation, significantly reducing traditional welding processes.
2. Seamless Design: The Perfect Combination of Aesthetics and Structure
Traditional e-bike frames are typically assembled from multiple steel or aluminum tubes with welded joints, which add weight and affect the overall appearance. The P5 achieves integrated molding from the head tube and down tube to the rear fork, eliminating welds. This results in a clean and flowing exterior consistent with modern minimalist design principles.

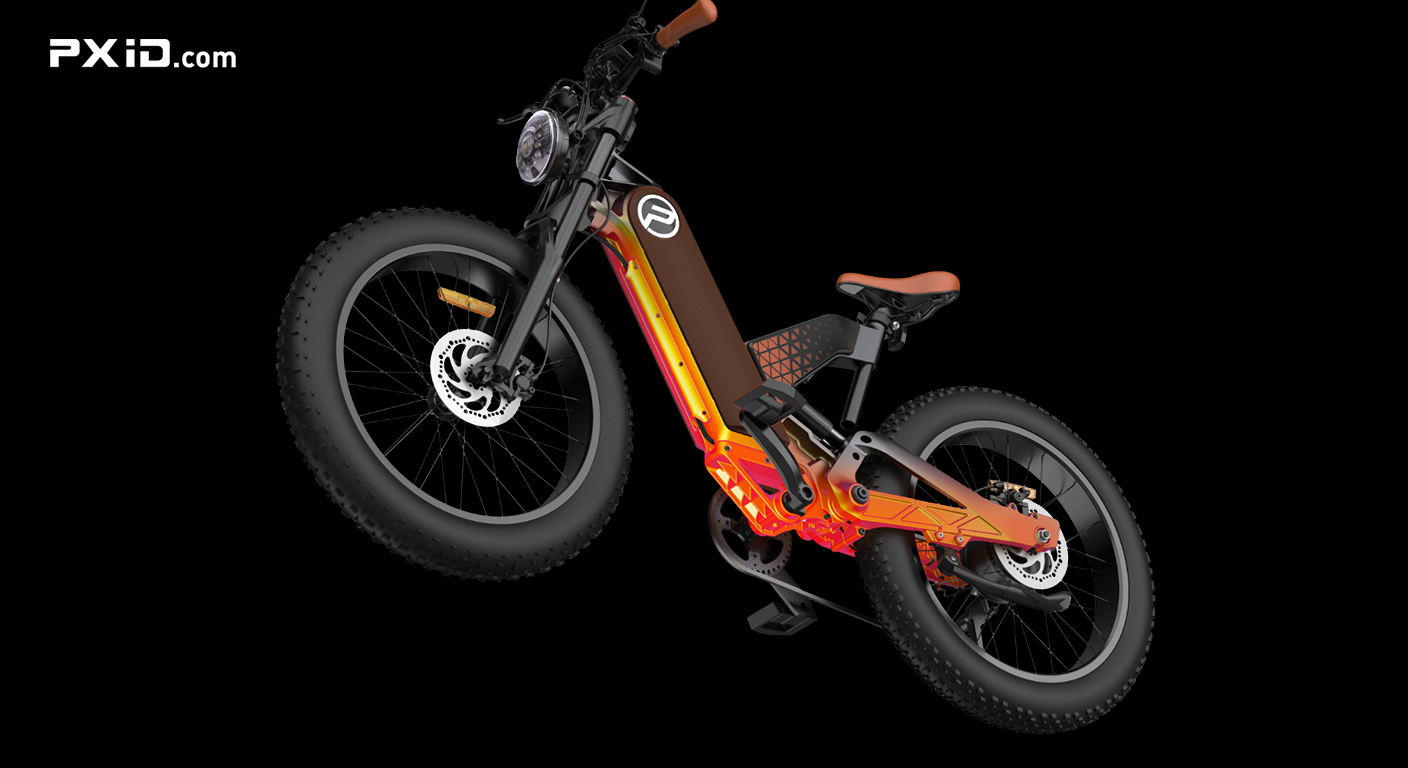

Figure 1: PXID P5 Integrated Magnesium Alloy Frame
The illustration shows a seamless connection between the head tube, down tube, and rear fork, with evenly distributed structural strength.
Seamless construction not only enhances appearance but also improves structural performance. Pressure and stress are distributed evenly across the frame, reducing stress concentration points, which lowers the risk of cracks and fatigue.
Table 2: Traditional Welded vs. Integrated Magnesium Alloy Frame Performance
|
Metric |
Traditional Welded Aluminum |
PXID P5 Integrated Magnesium Alloy |
| Weight (Complete Bike) | 18–20 kg | 14–15 kg |
| Weld Strength (MPa) | 200–250 | Not applicable (one-piece molding) |
| Design Flexibility | Medium | High (complex curves possible in one piece) |
| Fatigue Life | ~5 years | 7–10 years |
Source: PXID P5 Product Specifications
3. Advantages of Ultra-Lightweight Design
The magnesium alloy casting of the P5 frame reduces weight and optimizes power efficiency and ride experience. According to PXID internal tests, a frame weighing approximately 14 kg compared to a 20 kg aluminum counterpart can improve energy efficiency by 15–20%, while significantly reducing rider fatigue on short urban trips.
Table 3: Frame Weight Impact on Range and Energy Consumption
|
Frame Weight |
Range (Standard 500 Wh Battery) |
Energy Consumption (Wh/km) |
| 20 kg (Aluminum) | 60 km | 8.3 |
| 15 kg (P5 Magnesium Alloy) | 70 km | 7.1 |
Source: PXID Internal Test Report
The lightweight frame also enhances overall handling, making urban riding more agile and safe, particularly in narrow streets and complex conditions.
4. Manufacturing Challenges and Solutions for Integrated Molding
Magnesium alloy casting requires precise control under high-temperature and high-pressure conditions. PXID applies the following technologies in P5 frame production:
High-precision mold design ensures the frame curves and internal tubes are formed in a single piece, reducing the risk of porosity and shrinkage.
Molten metal temperature control maintains 650–700 °C to ensure fluidity and structural integrity.
Pressure injection control (70–100 MPa) allows the magnesium to fill the mold quickly, achieving precise formation of complex structures.
Post-processing and surface enhancement, including shot blasting and anodization, improve corrosion resistance and surface aesthetics.
Through these techniques, PXID has successfully mass-produced integrated magnesium alloy frames with high quality and low defect rates.
5. Industry Impact and Future Trends
The P5 technology breakthrough offers new design solutions for the electric mobility industry:
● Lightweight and extended range: Reducing frame weight decreases overall energy consumption and improves range.
● Minimalist aesthetic design: Seamless frames provide a unified visual and tactile experience.
● Efficient production and quality assurance: Integrated casting reduces part count and assembly steps, increasing production efficiency and consistency.
As magnesium alloy casting technology matures, future e-bikes are likely to adopt more minimalist, lightweight, and personalized designs, supporting the development of sustainable urban mobility solutions.
The PXID P5 frame demonstrates the tremendous potential of magnesium alloy casting in the electric bike industry, providing manufacturers with valuable solutions for lightweight construction and aesthetic design.
FAQ
Magnesium alloy offers high strength and low weight. It reduces frame mass while maintaining structural integrity, enhancing energy efficiency and riding comfort.
Seamless frames distribute stress evenly, reducing fatigue points. This extends frame life compared to traditional welded designs.
Yes. PXID’s high-pressure casting enables complex curves and intricate designs in a single frame, offering greater design flexibility.
P5’s magnesium alloy frame balances weight reduction with structural strength, maintaining safe and stable handling for urban rides.
Internal tests show P5 frames improve energy efficiency by approximately 15–20%, extending range per battery charge.
Yes. PXID applies surface treatments and anodization to enhance corrosion resistance without adding significant weight.
Integrated casting eliminates welds, reducing stress concentration points, improving aesthetics, and streamlining production.
PXID has optimized high-pressure casting for mass production, ensuring consistent quality and low defect rates.
Absolutely. The lightweight, seamless frame improves maneuverability, reducing rider fatigue and enhancing urban commuting experience.
Yes. Magnesium alloy casting is adaptable for lightweight components in e-bikes, scooters, and small electric vehicles, enhancing performance and aesthetics.
