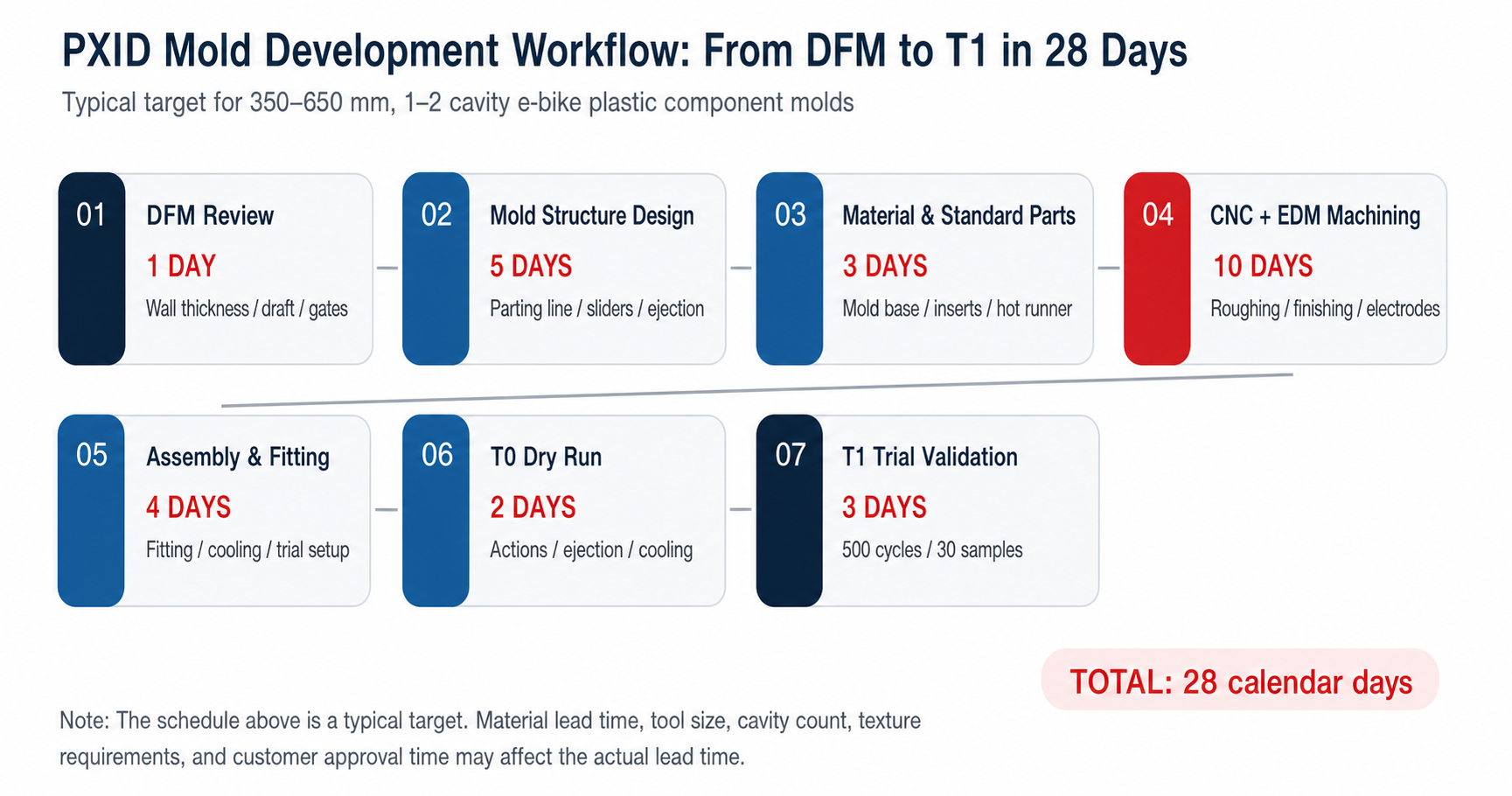

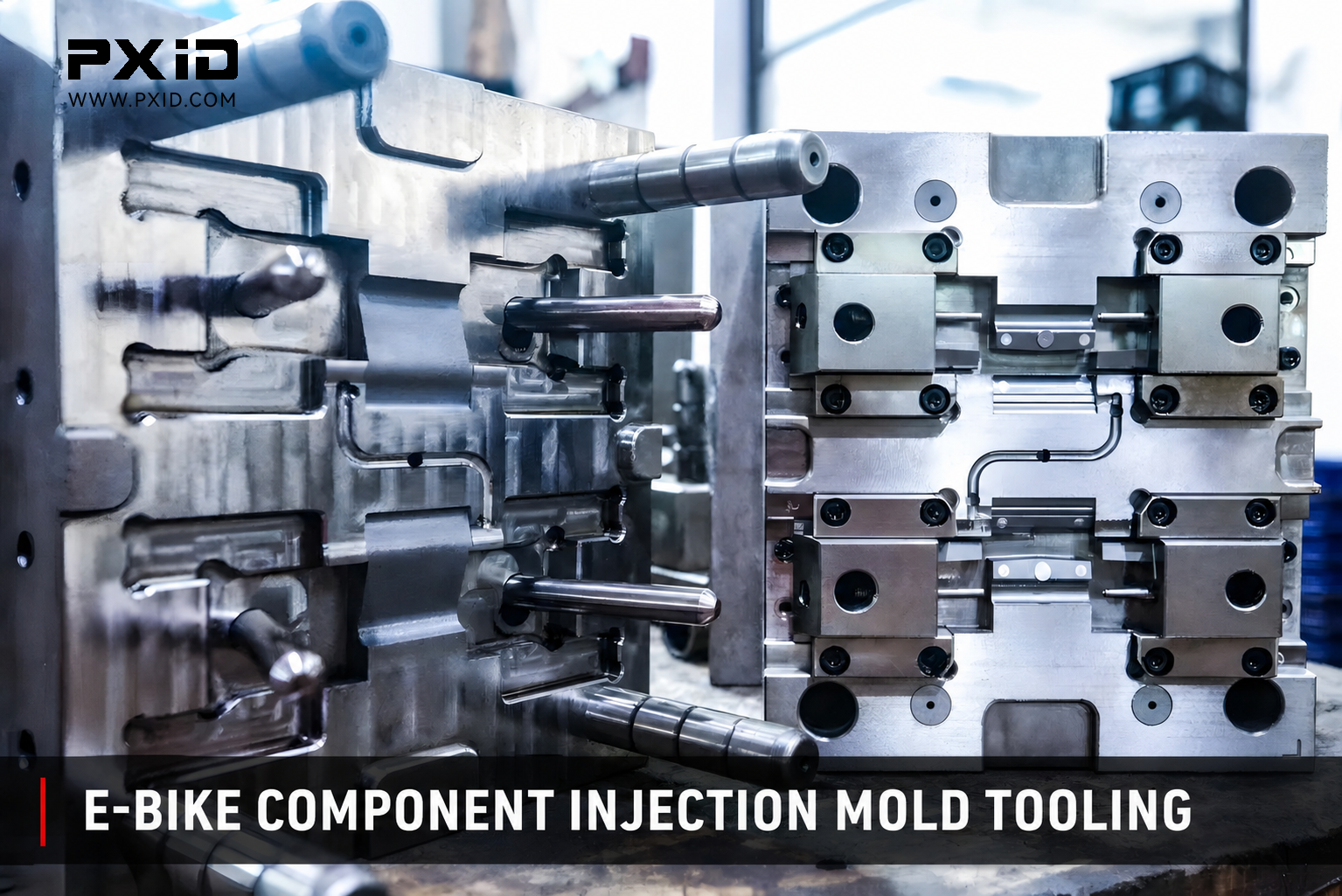

Mold Development Flowchart: Seven Milestones from DFM to T1
1. 24-Hour DFM Review: Resolve 12 Categories of Tooling Risk Upfront
After receiving STEP, IGES, or Parasolid data, PXID creates a 12-point DFM checklist. The target is to issue initial feedback within 24 hours and freeze the design within 48 hours after customer approval.
• Target nominal wall thickness: 2.5–3.2 mm; thickness variation between adjacent areas: within ±15%.
• Draft angle for standard textured surfaces: ≥1.5°; draft for deep textures is recalculated according to texture depth.
• Rib thickness is limited to 50%–60% of the nominal wall thickness to reduce sink marks.
• A 0.8–1.2 mm steel-safe allowance is retained around mounting holes, snap-fits, and inserts.
• Parting lines are kept away from visible Class-A surfaces; the flash-control target is ≤0.05 mm.
• If projected warpage exceeds 0.6 mm per 300 mm, rib locations, gates, or cooling circuits are adjusted before tooling begins.
| Technical Reference: NX mold-design guidance explains how to validate wall thickness, undercuts, fillets, core/cavity geometry, ejector pins, and cooling circuits. Siemens NX Tooling & Fixture Design |
2. Mold Structure Designed in Five Days: Every Parameter Must Be Verifiable

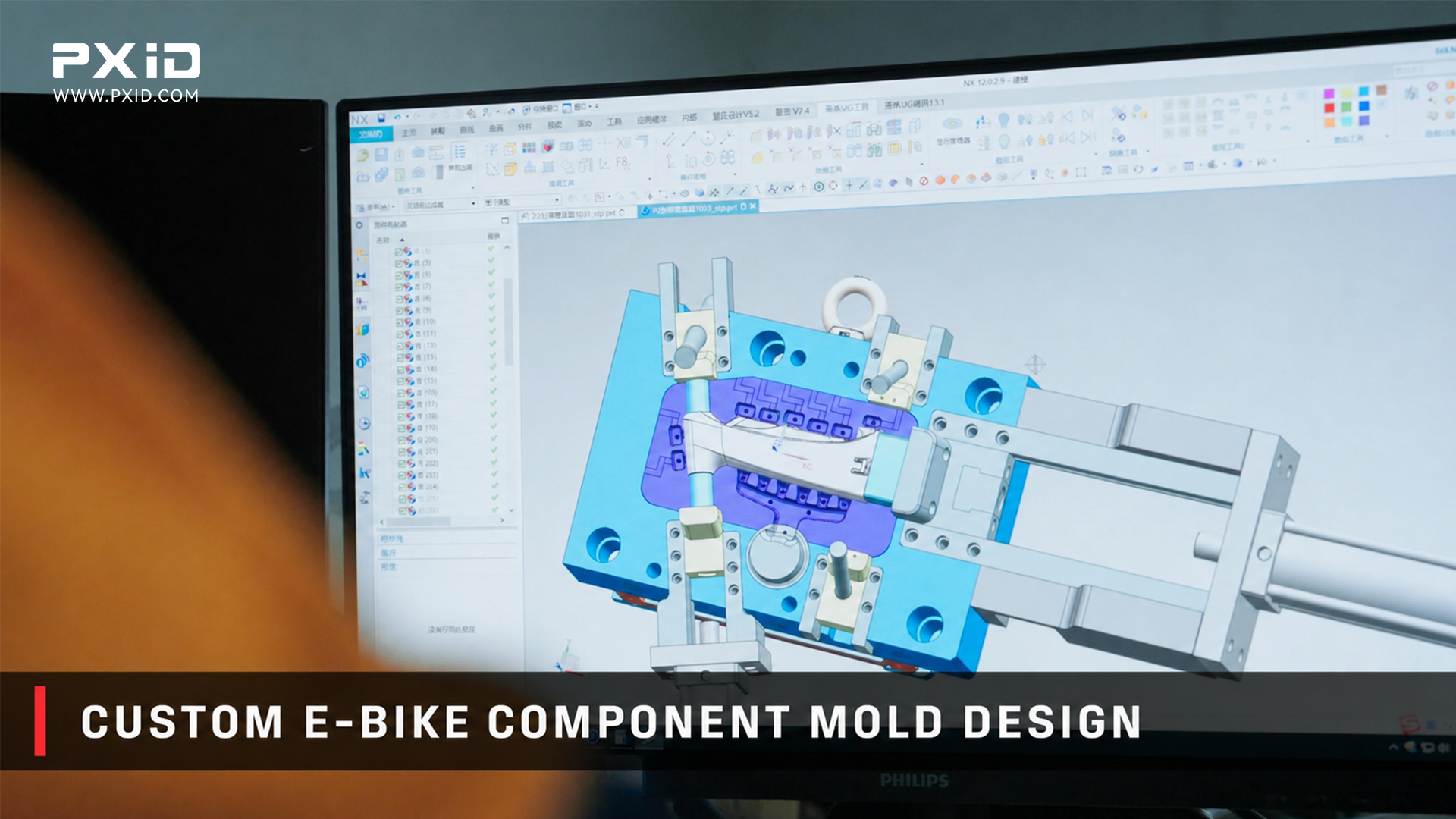

During mold design, broad phrases such as “optimize the structure” are replaced with measurable parameters. A typical single-cavity controller-cover mold may include two side-action sliders, 18 ejector pins, four cooling circuits, one gating system, and eight critical assembly datums.
1. Day 1: Define the mold-opening direction, parting line, and core/cavity boundaries.
2. Day 2: Define gate, runner, and vent locations; set vent depth according to the material.
3. Day 3: Complete the sliders, lifters, and ejection system; run a full-stroke interference check.
4. Day 4: Lay out four cooling circuits, targeting a mold-temperature differential of ≤5°C.
5. Day 5: Release 2D manufacturing drawings, the BOM, electrode list, and manufacturability review records.
| Technical Reference: Moldflow can be used to analyze filling, packing, warpage, and flow balance in multi-cavity molds. Autodesk Moldflow Process Setup |
3. CNC/EDM Machining in 10 Days: Break the Schedule Down by Operation

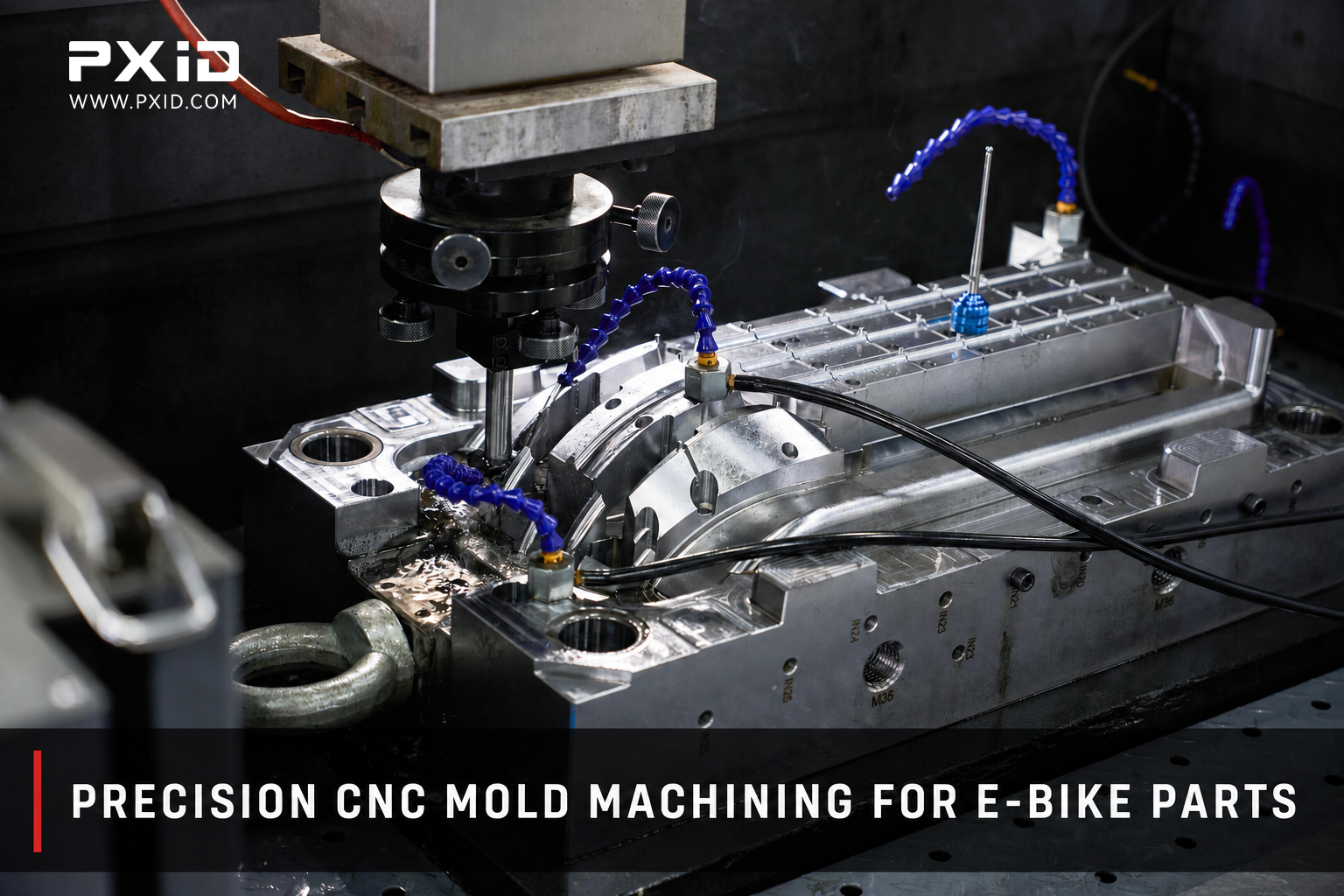

A typical machining schedule allocates two days to roughing, two days to semi-finishing, three days to electrodes and EDM, two days to finishing, and one day to polishing and inspection. Mold inserts may use P20/718H-type pre-hardened steel with a target hardness of 30–36 HRC. The machining target is ±0.02 mm for critical mating surfaces and ±0.05 mm for standard structural surfaces.
• Leave a 0.3–0.5 mm finishing allowance after rough machining.
• Target surface roughness after cavity finishing: Ra 0.8–1.6 μm.
• Lock the electrode count and EDM hours when the BOM is frozen to minimize unplanned work.
• After machining, measure the core, cavity, sliders, and datum holes, recording at least 20 critical dimensions.
| Tolerance Reference: ISO 20457 specifies tolerances and acceptance conditions for molded plastic parts and can serve as a basis for aligning drawing tolerances. ISO 20457:2018 |

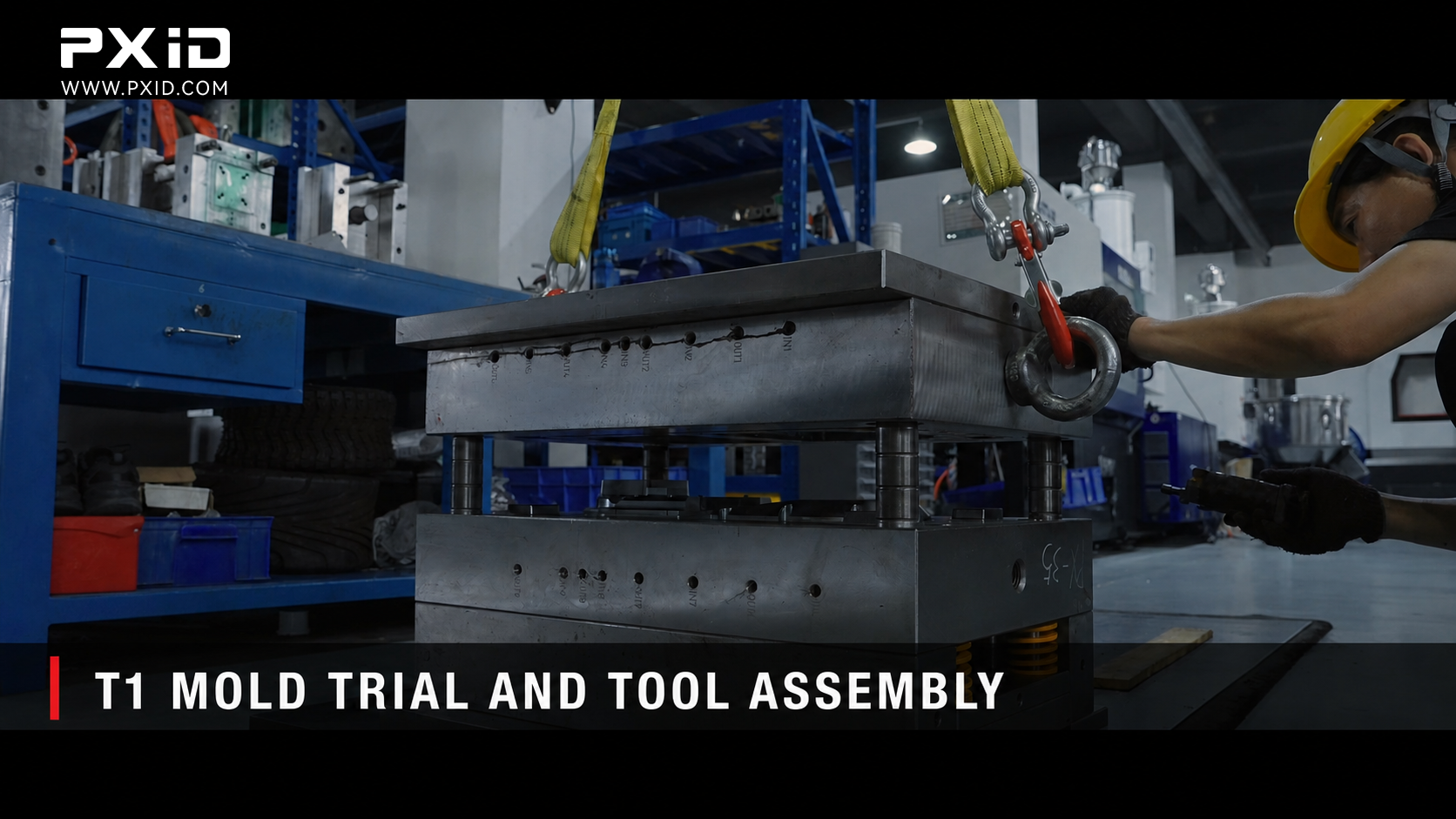

4. Mold Assembly and T1: 500 Cycles, 30 Samples, Five Acceptance Criteria
T1 does not end merely because the mold can produce a part. PXID’s typical validation protocol calls for 500 consecutive cycles and 30 samples taken after the process has stabilized. The samples are checked for filling, flash, sink marks, warpage, and critical assembly dimensions. The target pass rate for critical items is 92%. For any failed item, PXID identifies the owner, root cause, mold-modification location, and T2 date within 48 hours.
• Run 500 consecutive trial cycles and take 30 samples from the stable production window.
• Target T1 pass rate for critical items: ≥92%.
• Issue a mold-correction plan for unresolved items within 48 hours.

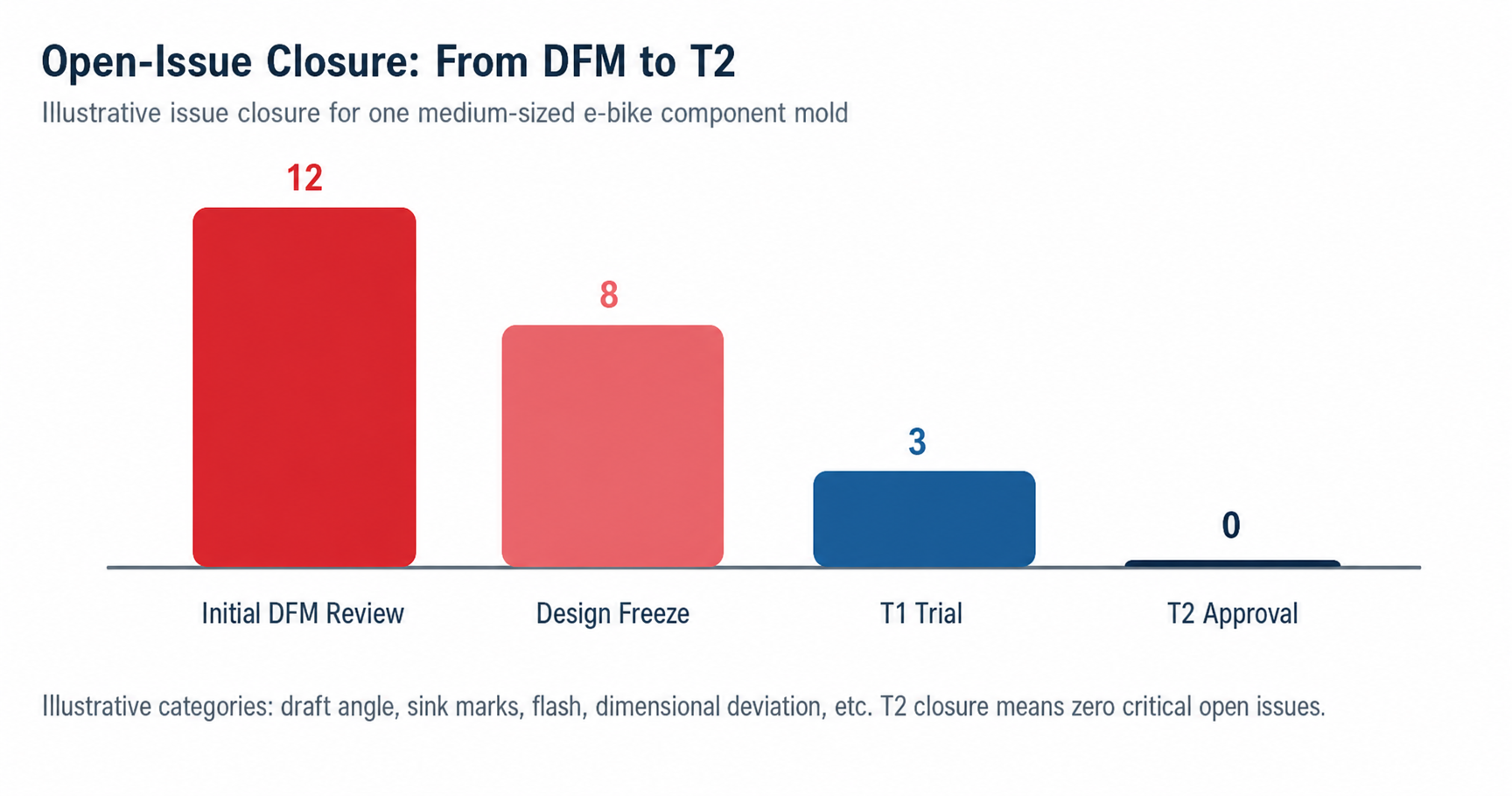

| Quality Gate | Sample / Cycles | Control Criteria | Target | Action Rule |
|---|---|---|---|---|
| DFM Freeze | One 3D dataset | Wall thickness / draft / undercuts / parting line | 100% closure of 12-point checklist | No material cutting until all items are closed |
| T0 Dry Run | 50 cycles | Sliders, ejection, cooling circuits | Zero interference; cooling-circuit pressure drop ≤10% | Correct abnormalities the same day |
| T1 Mold Trial | 500 cycles | Filling, flash, sink marks, warpage | Critical-item pass rate ≥92% | Submit mold-correction plan within 48 h |
| Dimensional Validation | 30 parts | Critical assembly dimensions | ±0.05 mm; target Cpk ≥1.33 | Initiate root-cause analysis for out-of-tolerance results |
| T2 Approval | 300 cycles | Critical open issues | Zero critical issues | Begin low-volume production after sample approval |
|
Design Reference: The Protolabs injection-molding design guide provides guidance on wall thickness, dimensions, materials, and manufacturability. Plastic Injection Molding Design Guidelines
|
||||
5. Dimensional Approval: Control Critical Assembly Features to ±0.05 mm

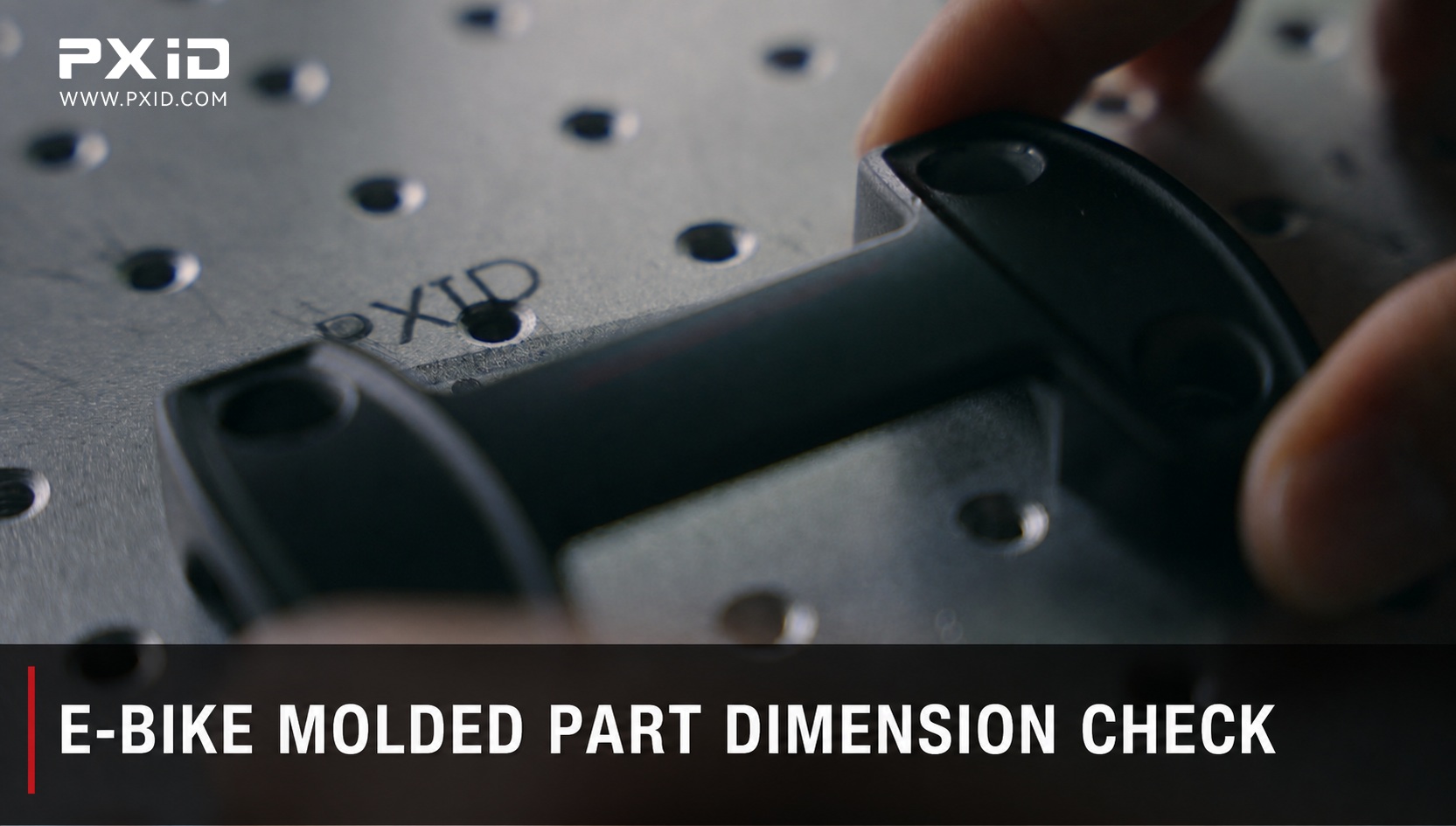

For battery housings, controller covers, and light brackets, the dimensional report covers at least 30 samples. The target tolerance for critical mounting-hole spacing, snap-fit locations, and sealing surfaces is ±0.05 mm; general envelope dimensions follow the tolerance class specified on the drawing. Before low-volume production begins, the target Cpk for critical dimensions is ≥1.33.
Mold Development Capacity: Eight Concurrent Projects, 10–14 Molds per Month

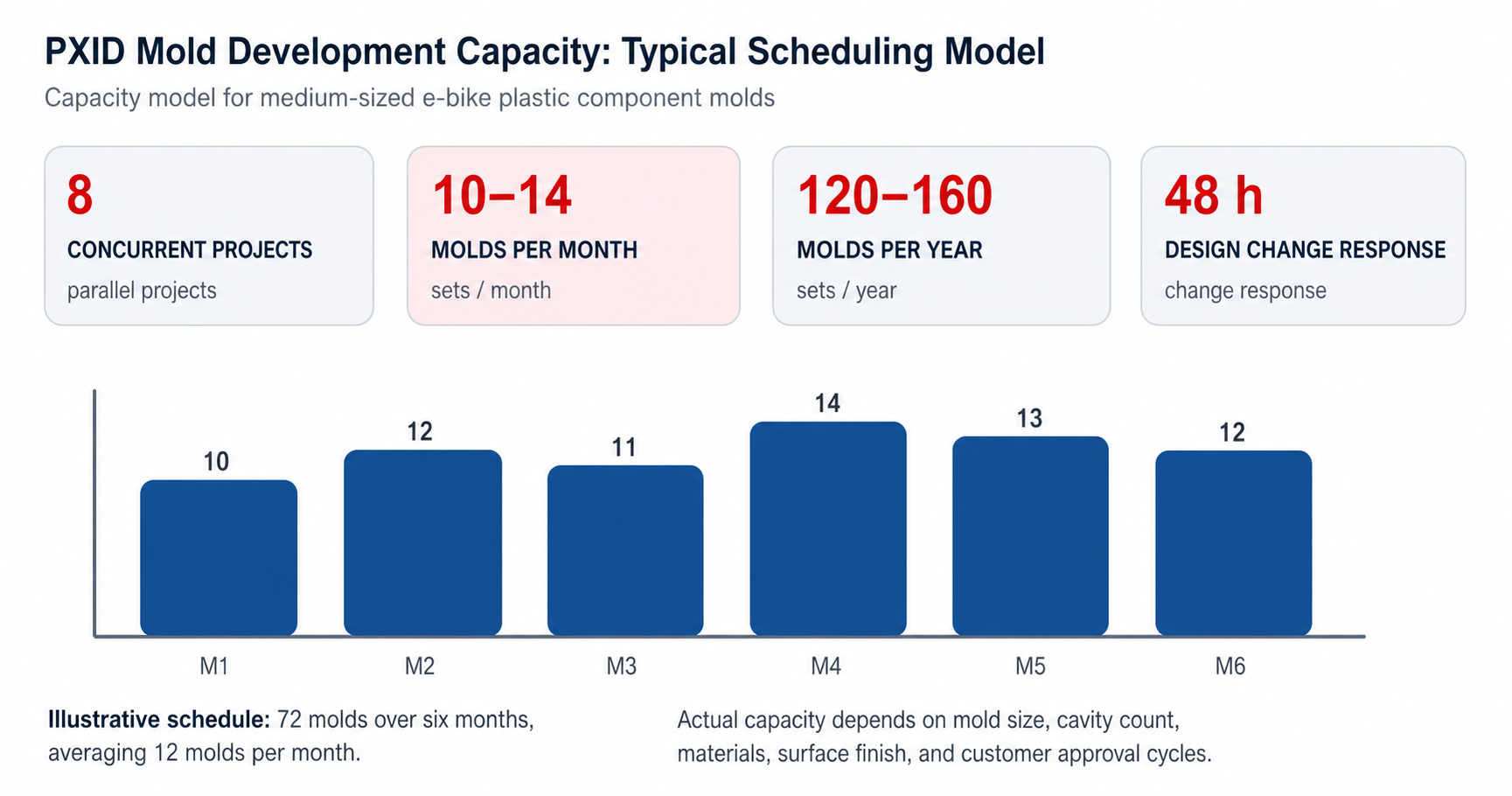

To quantify “in-house mold-making capability,” this article uses a consistent baseline for medium-sized molds for e-bike structural plastic parts: 350–650 mm, one or two cavities, and commonly used ABS, PC, or PA66-GF materials. A typical schedule runs eight projects concurrently, with a target of 10–14 molds per month and an annual plan of 120–160 molds.
| Project Baseline | Typical Range | Scheduling Impact |
|---|---|---|
| Mold Size | 350–650 mm | Sizes above 650 mm require reassessment of machine and lifting requirements |
| Cavity Count | 1–2 cavities | Four or more cavities require additional runner-balance validation |
| Common Materials | ABS / PC / PA66-GF | Glass-filled materials require additional wear and shrinkage compensation |
| Concurrent Projects | Eight | Staggered across design, machining, and assembly |
| Monthly Plan | 10–14 molds | Based on medium-sized structural-part molds |
| Annual Plan | 120–160 molds | Excludes large die-casting dies and delays awaiting customer design approval |
PXID Mold Services: Explore PXID’s mold design, manufacturing, and injection-molding capabilities. PXID Mold Design & Fabrication
FAQ
PXID can provide a preliminary quote, but the material, annual demand, cosmetic surfaces, critical assembly dimensions, and target market must be confirmed before tooling begins. PXID aims to return the first issue list from its e-bike mold DFM analysis within 24 hours.
The 28-day target applies to moderately complex projects measuring 350–650 mm, with one or two cavities, when the customer completes approvals within 48 hours. Large molds, deep textures, high cavity counts, hot runners, or repeated design changes require rescheduling.
Within 48 hours after T1, PXID submits an issue report identifying whether the cause lies in the part design, gate, packing pressure, mold temperature, or cooling circuit. Local mold corrections are generally scheduled within two to five days; changes requiring a new slider or mold insert are assessed separately.
Not necessarily. A soft tool, simplified mold, or CNC-machined pilot batch can be evaluated first. If the design is frozen and projected demand exceeds 3,000–5,000 parts, moving directly to a production mold generally provides better control of unit cost and dimensional consistency.
Ownership, storage period, maintenance, spare parts, and transfer conditions must be defined in the contract. PXID can provide the mold BOM, 2D drawings, trial parameters, and dimensional report; the exact deliverables are governed by the project contract.
Key applications include battery housings, controller covers, light brackets, cable covers, instrument housings, decorative covers, and other custom e-bike component mold design projects. Material selection and target mold life are determined separately based on the operating environment.
Send Your E-Bike Component CAD File for a 24-Hour Mold DFM Review
| Contact PXID: Submit your 3D data, material, and target T1 date. Contact PXID |
