1. Gates: Three Belt Stages Inside a Mid-Drive Reduction System
PXID Product Example

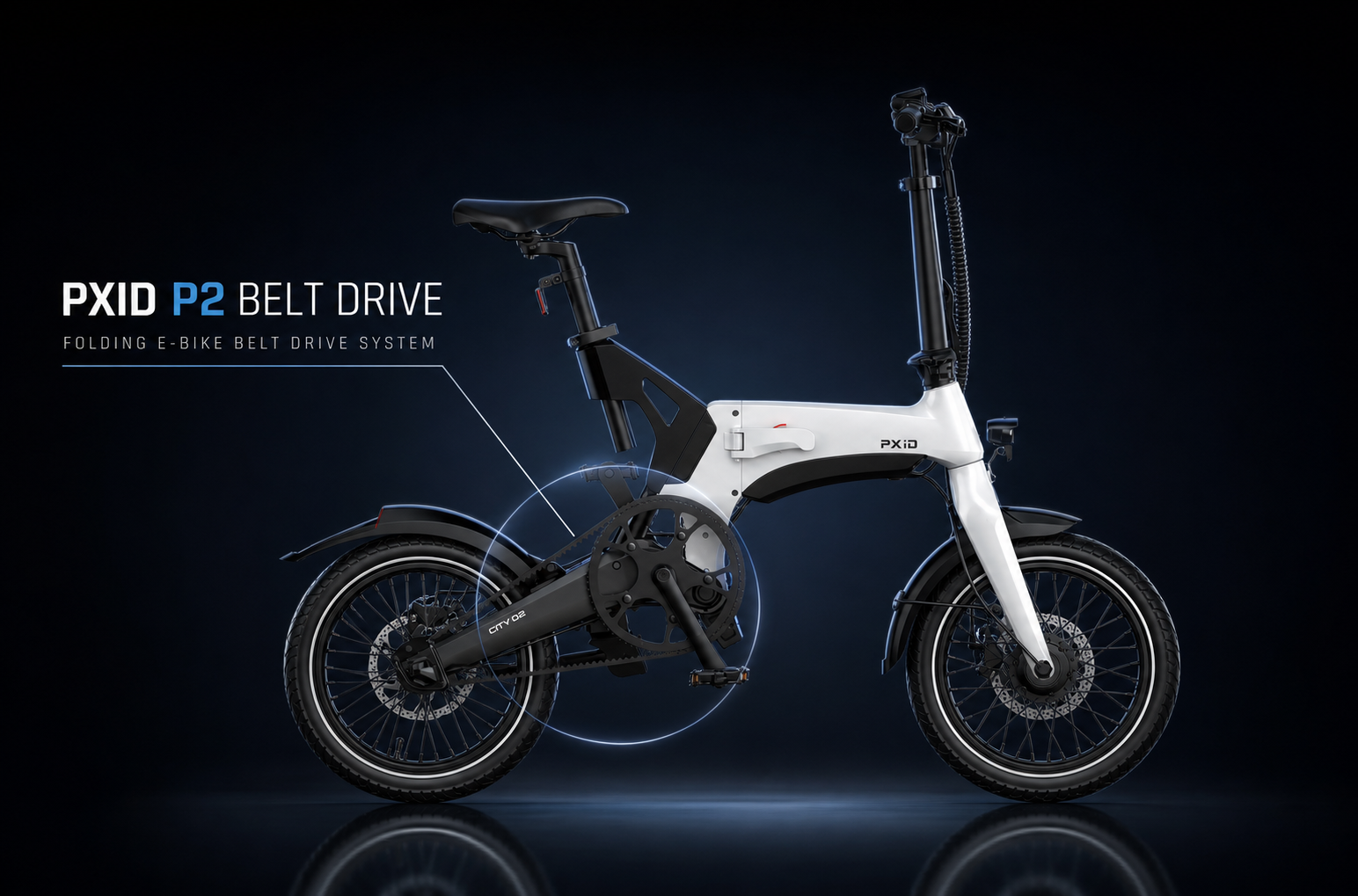

The PXID P2 already uses an external synchronous belt between the front and rear sprockets for final drive. This is not the same architecture as the three-stage belt reduction inside the mid-drive unit described in the Gates patent. The P2 demonstrates how a belt can be integrated into a bicycle drivetrain; the patent concept goes further by introducing belts into the motor’s internal reduction mechanism. The two should be described separately.
1.1 The P2 Belt System Is More Than a Chain Replacement

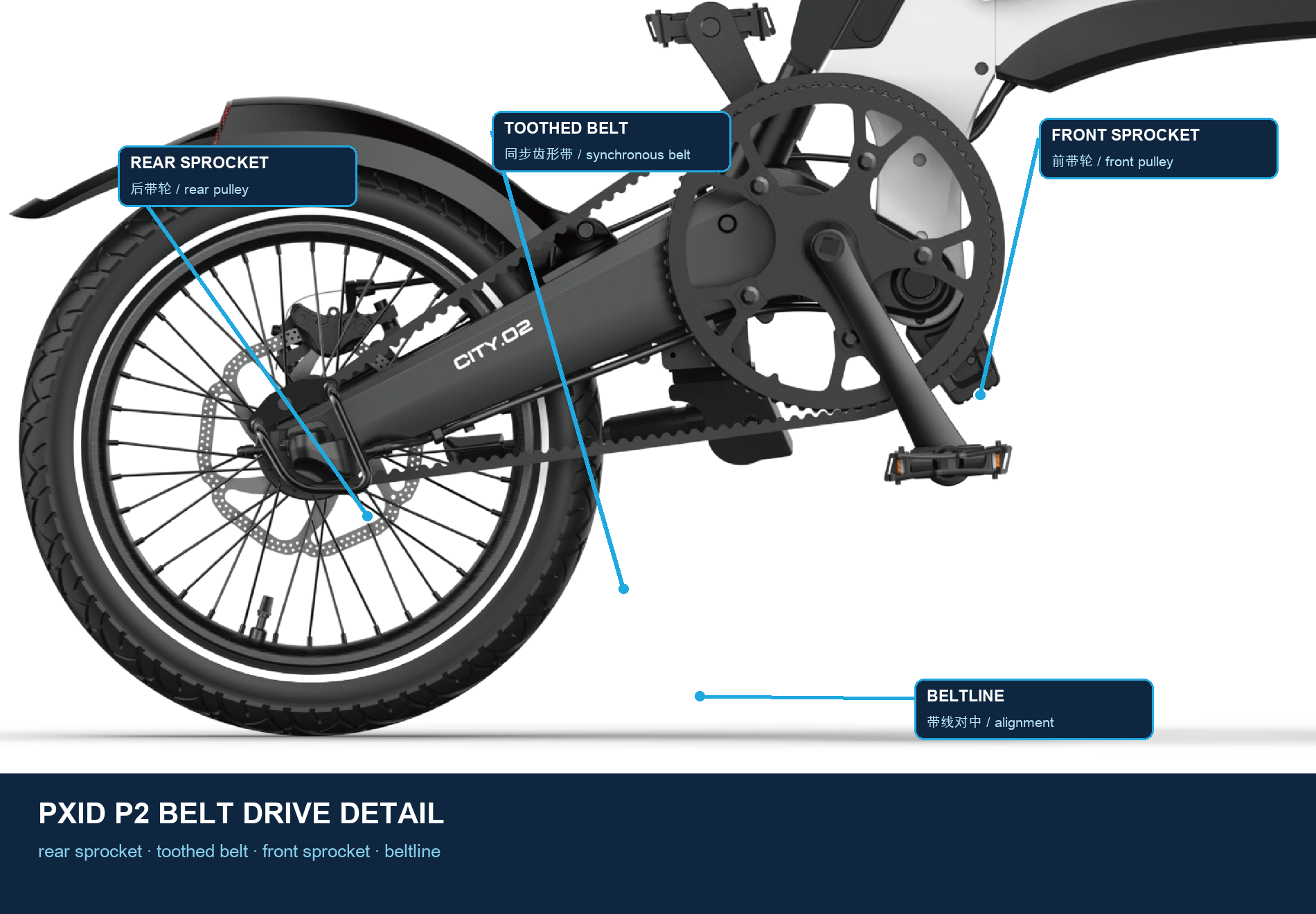

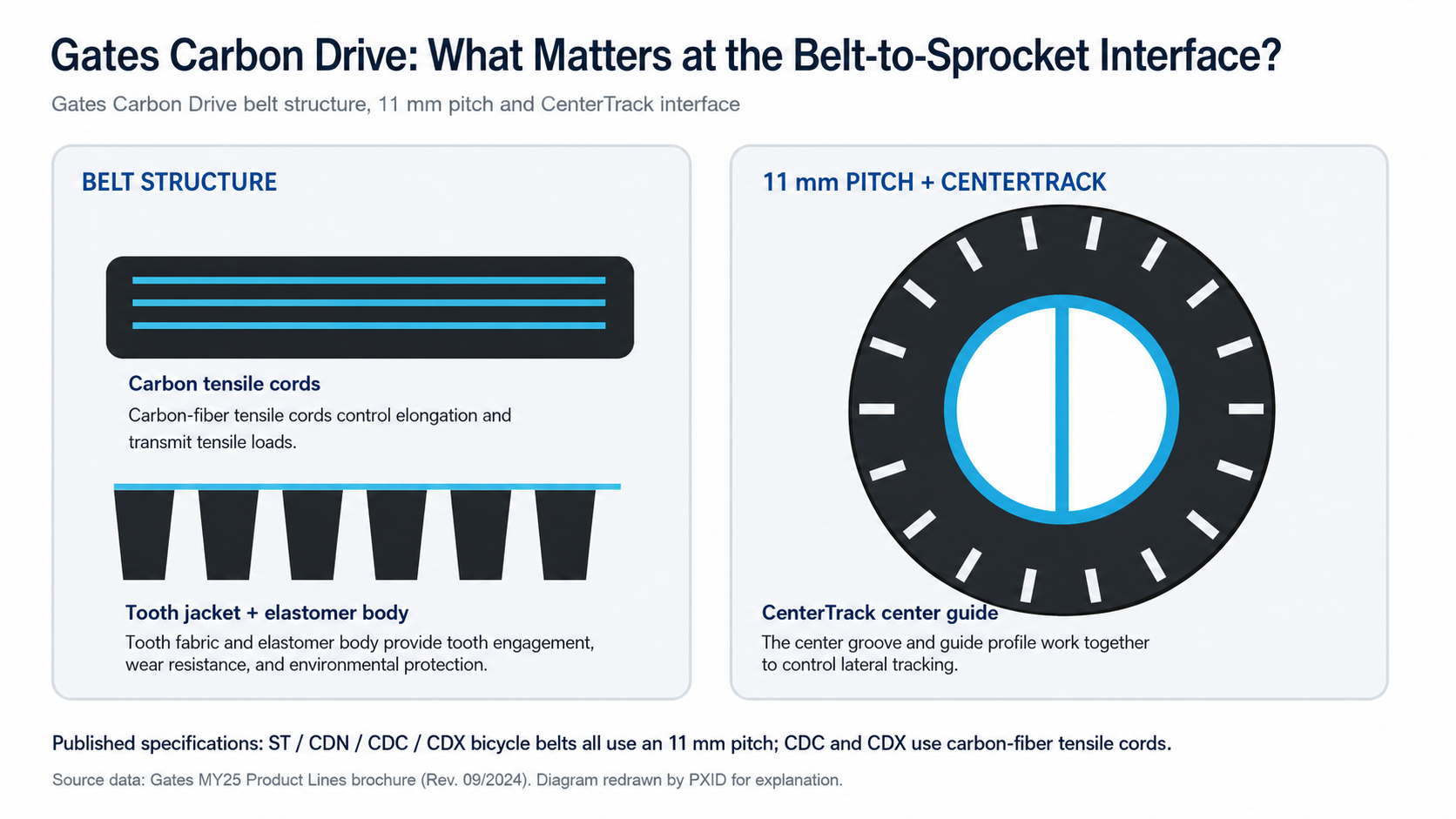

Four elements must be designed together in a complete bicycle belt-drive system: the front sprocket, rear sprocket, synchronous toothed belt, and frame beltline. The belt teeth engage positively with the sprocket teeth. The frame must allow installation of the closed-loop belt and provide a means of adjusting tension. On the P2 shown here, the external belt provides a single-stage drive from the crank to the rear wheel, while the rear-hub motor and pedal drivetrain coexist on the same bicycle.
|
Item to Verify |
Gates Published Specification |
Complete-Bike Development Action |
|
Belt Pitch |
11 mm for ST, CDN, CDC, and CDX |
Use matching tooth profiles and pitch on the front and rear sprockets |
|
Tensile Member |
Carbon tensile cord |
Do not sharply fold, back-bend, or twist the belt during assembly |
|
Tracking System |
CenterTrack is used on CDN, CDC, and CDX |
Verify sprocket runout, beltline, and frame stiffness together |
|
CDC Mid-Drive |
Rated torque ≤75 N·m, subject to the specified frame test |
Freeze motor torque and riding-position category first for urban mid-drive models |
|
CDX Mid-Drive |
Product-line table lists ratings up to ≤100 N·m |
Applications above 100 N·m require review by Gates |
|
Minimum Rear Sprocket Size |
CDN 22T / CDC 20T / CDX 19T |
Select according to drive ratio, center distance, and available belt lengths |
These figures do not identify the specific components currently used on the P2. The exact belt series, tooth counts, center distance, and assembly tension for the P2 must be verified against the BOM, 2D drawings, and prototype measurement records. This article uses Gates’ published specifications only to explain the boundaries an OEM must check during selection.
1.2 Rear Sprocket Dimensions and Beltline: Tooth Count Alone Is Not Enough

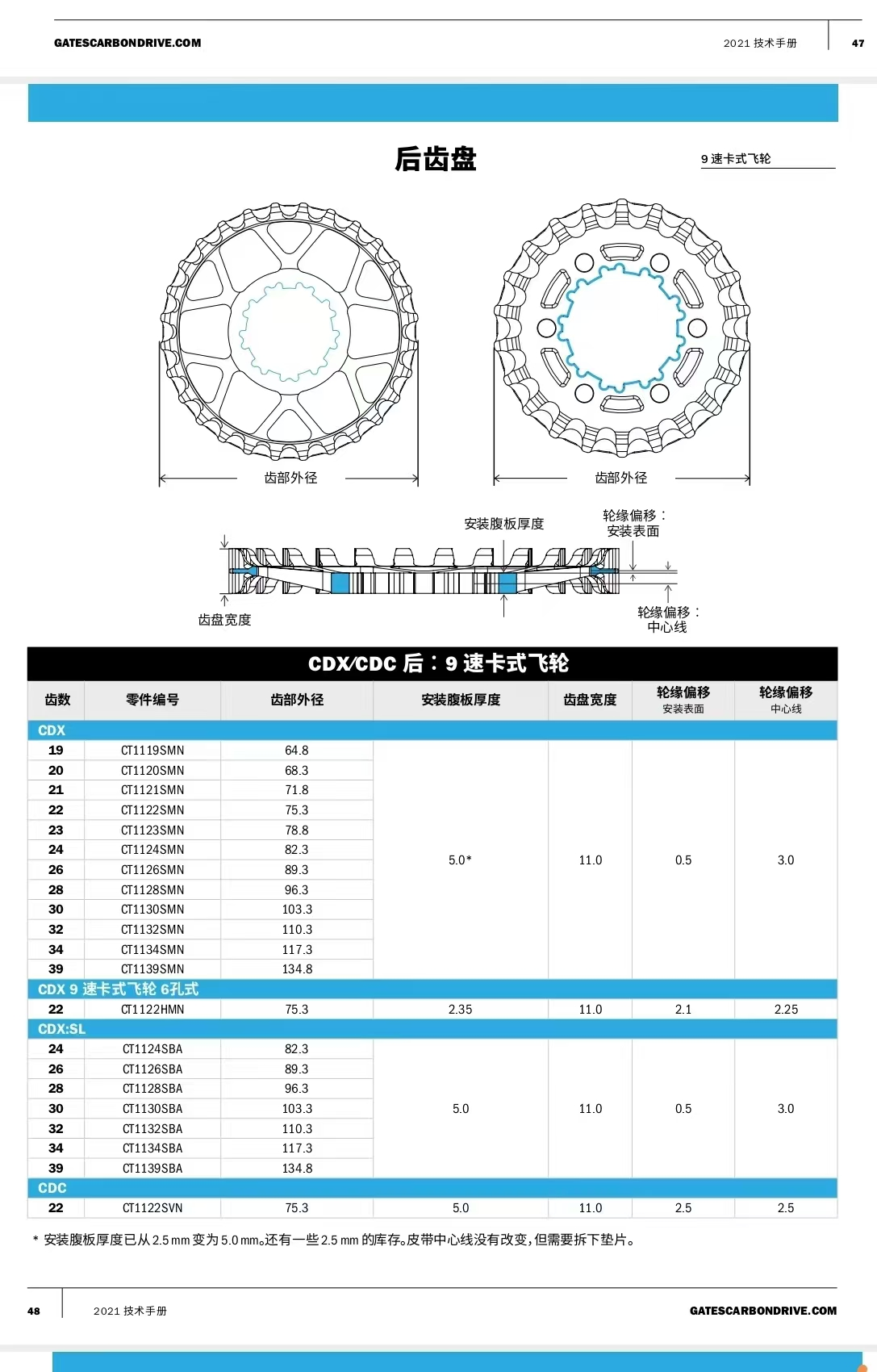

The Gates technical-manual page supplied by the user gives a tooth-tip outside-diameter range of 64.8–134.8 mm for 19T to 39T rear sprockets. A typical CDX nine-speed cassette sprocket is 11.0 mm wide with a 5.0 mm mounting-web thickness, and rim offset must distinguish between the mounting surface and centerline. For example, the tooth-tip outside diameters of the 19T, 22T, 30T, and 39T sprockets are 64.8, 75.3, 103.3, and 134.8 mm respectively.
|
Rear Sprocket |
Tooth-Tip OD |
Diameter Increase vs. 19T |
Design Check |
|
19T |
64.8 mm |
0 mm |
Tire/chainstay clearance and small-sprocket loading |
|
22T |
75.3 mm |
+10.5 mm |
Tooth count and target drive ratio |
|
30T |
103.3 mm |
+38.5 mm |
Chainstay, brake-rotor, and motor-cable clearance |
|
39T |
134.8 mm |
+70.0 mm |
Packaging space, guard envelope, and ground clearance |
| Assembly Acceptance
Insufficient tension increases the risk of tooth skipping, while excessive tension increases hub-bearing load, drivetrain resistance, and wear. Production inspection records should identify the belt model, front and rear tooth counts, beltline deviation, radial and axial sprocket runout, and the tension-measurement method—not merely state that the tension is “appropriate.” |
|||
| Source: Gates explains the risks at both extremes of incorrect tension and describes measurement methods including acoustic frequency measurement, the Krikit gauge, and factory sonic tension meters. Gates handling and tension | |||
1.3 Gates Patent: Moving Belt Drive from the Bicycle into the Motor

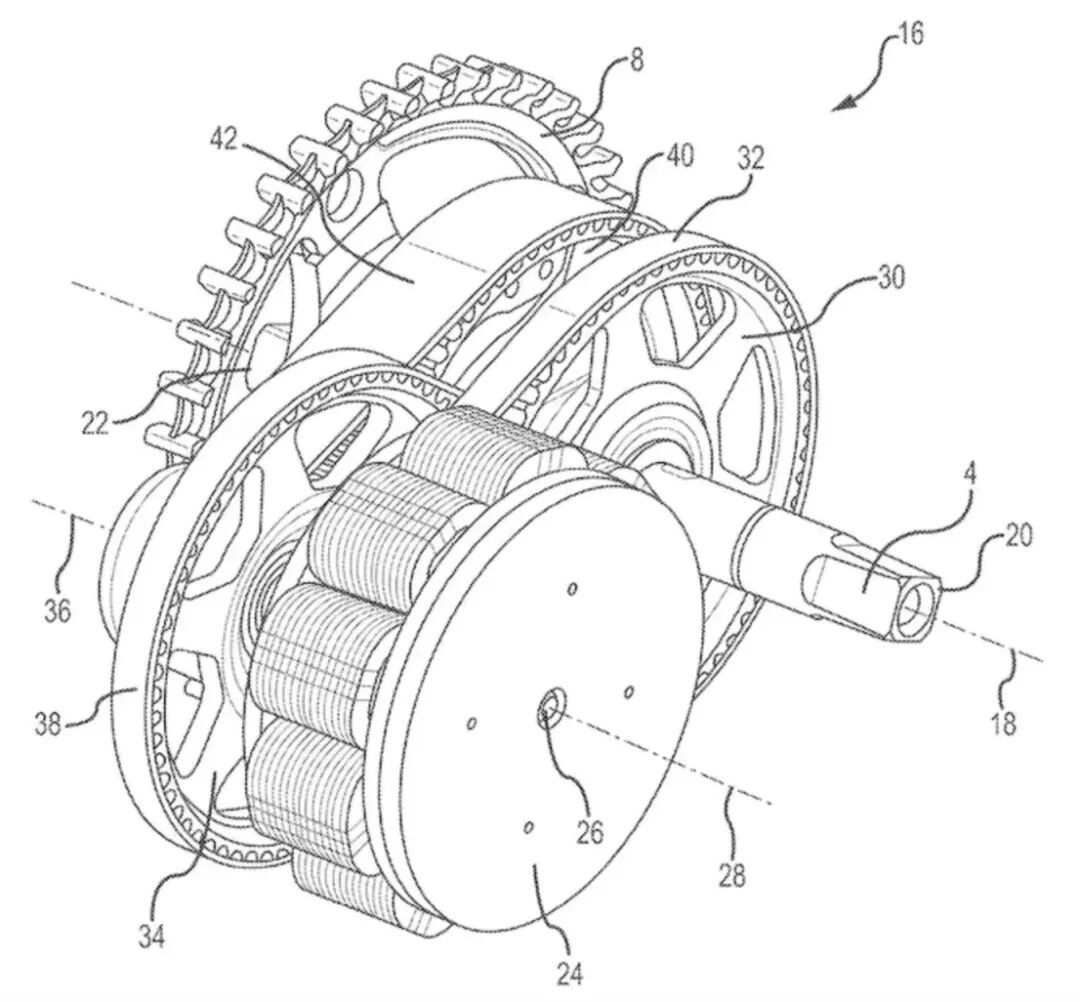

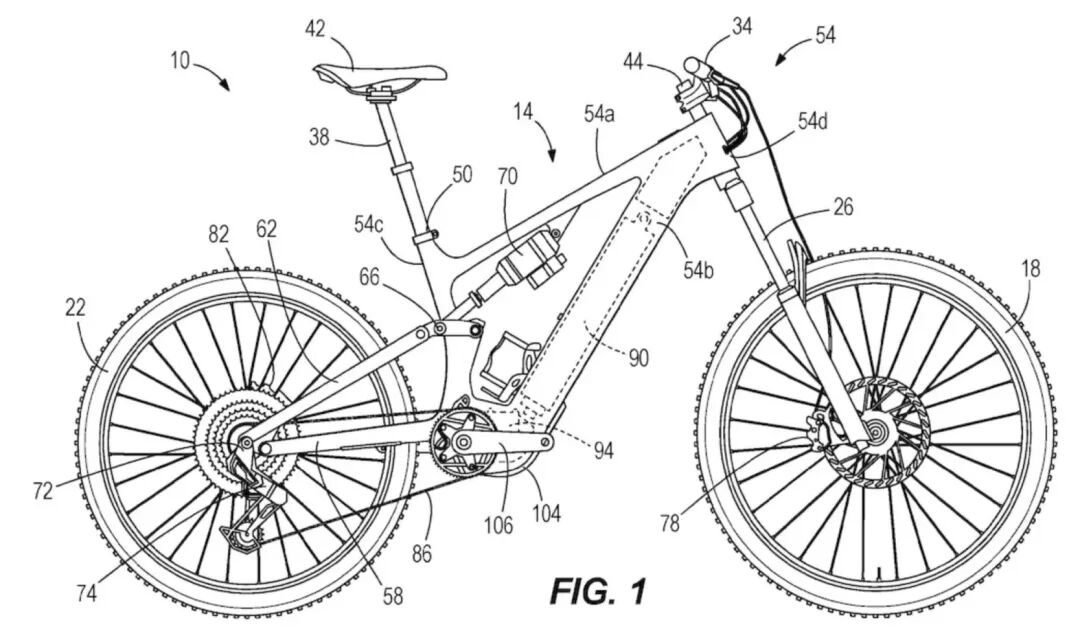

Gates publication WO2024137678A1 describes a mid-drive transmission for an e-bike. The motor output shaft is offset from the crankshaft, and power passes sequentially through first, second, and third belt-reduction stages before reaching the drive wheel. The patent text specifies an overall reduction ratio of approximately 40:1, with an optional range of about 20:1–50:1.
|
Parameter |
Published Value |
Engineering Significance |
|
First-Belt Width |
7–11 mm |
High-speed, low-torque stage |
|
Second-Belt Width |
7–11 mm |
Intermediate reduction stage |
|
Third-Belt Width |
25–35 mm |
Low-speed, high-torque stage |
|
Overall Reduction Ratio |
20:1–50:1 |
Patent example: approximately 40:1 |
|
Example Motor Operating Point |
2,400 rpm / approximately 3 N·m |
Mechanical power: approximately 754 W |
|
Ideal Sprocket Torque |
60–150 N·m |
Excludes transmission losses |
|
Estimated at 85% Efficiency |
51–128 N·m |
Calculated by PXID; not a patent performance claim |
Structurally, the potential value of the belt concept lies in reducing gear-meshing noise and eliminating lubrication at gear-tooth interfaces. That does not make the entire motor maintenance-free. Belt tension, bearings, seals, thermal management, dust ingress, and high-torque fatigue in the third belt still require validation. Assuming 85% overall efficiency, the sprocket torque at the 20:1 and 50:1 limits is approximately 51 N·m and 128 N·m, rather than the lossless figures of 60–150 N·m.
| Source: Published on June 27, 2024, the document describes multiple belt-reduction stages, an overall ratio of 20:1–50:1, and an axial-flux motor embodiment. Gates WO2024137678A1 |
2. Specialized: One Downtube, Two Battery Capacities
Specialized’s “Bicycle with Modular Batteries and Adapter” concept focuses on the mechanical interfaces inside the downtube. A smaller battery connects to the existing downtube through a removable adapter, while unused space in the adapter can form a storage compartment. In the context of the current Levo platform, the concept can be understood as enabling one frame platform to accommodate both 600 Wh and 840 Wh battery configurations.
|
Configuration |
Capacity |
Compared with 840 Wh |
Suitable Use Case |
|
Lightweight Configuration |
600 Wh |
28.6% less capacity |
Short trips, responsive climbing, and lower complete-bike weight |
|
Long-Range Configuration |
840 Wh |
100% baseline |
Long distances, substantial climbing, and fewer charging stops |
|
Capacity Difference |
240 Wh |
40% increase over 600 Wh |
One platform serves two distinct user needs |
The implications for complete-bike development extend beyond simply allowing a larger battery to be swapped in. The design team must freeze the downtube cross-section, guide-rail and locking positions, connector float, water-ingress path, crash loads, and adapter tolerances as a coordinated system. For frame and battery-housing tooling, the priority is to give both batteries as many shared datum surfaces as possible; otherwise, modularity will translate into more parts and greater assembly variation.
| Source: The public listing shows application No. 19450166 with Pending status. The concept includes a downtube cavity, battery, and removable adapter. Specialized modular battery patent listing |
3. Shimano: Caliper Piston Diameter Extends to 40 mm

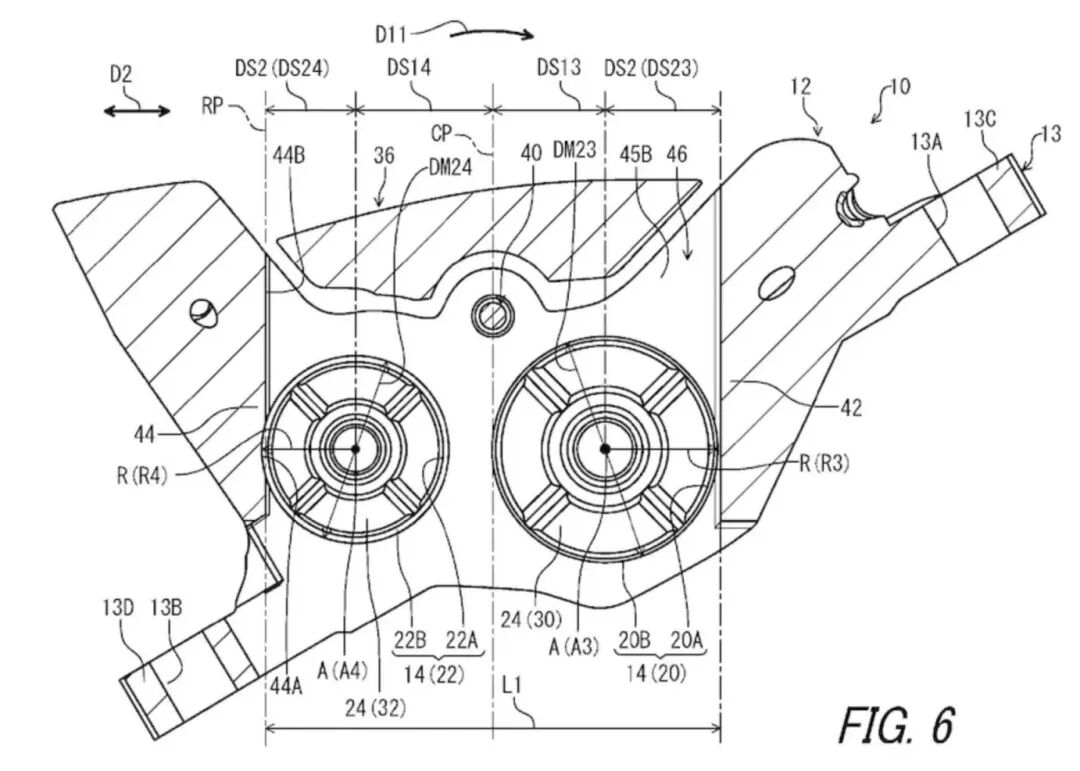

This caliper concept uses opposing piston pairs of different diameters. In the published description, one piston group is at least 19 mm in diameter and may be as large as 40 mm, while the other ranges from 15 to 17 mm. Different front and rear piston sizes can be used to tune pressure distribution across the brake pad and manage differences in leading-edge and trailing-edge wear.
|
Piston Combination |
Total Piston Area per Side |
Compared with 15/17 mm |
Notes |
|
15 / 17 mm |
403.7 mm² |
100% |
Reference combination for production four-piston calipers |
|
19 / 17 mm |
510.4 mm² |
+26.4% |
Moderate increase in area |
|
25 / 17 mm |
717.7 mm² |
+77.8% |
Lever feel and housing dimensions must be validated together |
|
40 / 17 mm |
1483.4 mm² |
+267.5% |
Upper limit of the disclosed range; not a production specification |
The areas in the table assume one large piston plus one 17 mm piston on each side and are intended only to compare hydraulic actuation area. A larger piston area does not increase braking force by the same proportion: master-cylinder diameter, lever ratio, fluid volume, caliper stiffness, pad friction coefficient, rotor diameter, and thermal fade all affect final performance. The 40 mm figure is the upper limit of the range described in the patent and should not be presented as a 40 mm piston product already launched by Shimano.
| Source: The application was published on August 1, 2024. The claims specify a first piston outside diameter of at least 19 mm and an embodiment range of 15–17 mm for the other group. Shimano US20240253729A1 |
4. Three Practical Implications for Complete E-Bike Development
• Drive-system interfaces move upstream: If a belt-reduction mid-drive enters mass production, motor-housing width, crankshaft coaxiality, tensioner service access, and the frame bottom-bracket area will need to be developed as one system.
• Battery platforms must be planned as a family: When 600 Wh and 840 Wh batteries share a downtube, common mounting datums, crash-load cases, and water-ingress tests should be established during concept development—not patched later with an adapter after production begins.
• Brake specifications must match complete-bike mass: Piston area, rotor diameter, and tire grip must be calculated together. A cargo e-bike and a lightweight city bike cannot simply share identical caliper parameters.
FAQ: How Should These Three Patents Be Interpreted?
This article is based on a published patent application, not a production launch. A patent indicates a company’s research direction, but the final product may use a different architecture or specifications—or may never reach the market.
A belt can reduce metal gear-meshing noise, but total system noise also comes from electromagnetic forces, bearings, tensioners, housing resonance, and the external chain. Prototype sound-pressure and frequency-spectrum testing is still required.
Only if the frame, adapter, connector, BMS protocol, and software calibration are all compatible. A 240 Wh capacity difference cannot be resolved through mechanical dimensions alone.
At the same hydraulic pressure, piston force increases with area, but lever travel, master-cylinder matching, caliper stiffness, and thermal load also change. Piston diameter alone does not determine braking performance.
PXID can translate drive, battery, and braking interfaces into complete-bike packaging, structural design, prototype validation, and production inputs, while defining the regulatory market, target power, battery capacity, and complete-bike mass at project kickoff.
