250W Mid-Drive vs Rear Hub Motor: Speed Limits and Regulations by Country
A 250W e-bike does not have one universal legal speed limit or climbing capability. Compliance requirements vary by market and usually depend on continuous rated power, pedal-assist cutoff speed, pedal operation, throttle functionality, and vehicle classification.
A 250W mid-drive motor and a 250W rear hub motor also deliver power differently. Mid-drive systems can use the bicycle’s gears and are generally more suitable for hills, cargo, and low-speed high-load riding, while rear hub motors offer a simpler structure for urban commuting.
1.Different Power, Speed and Assist-Logic Rules
2. How Can Both 110 N·m and 50 N·m Be Valid at 250W?

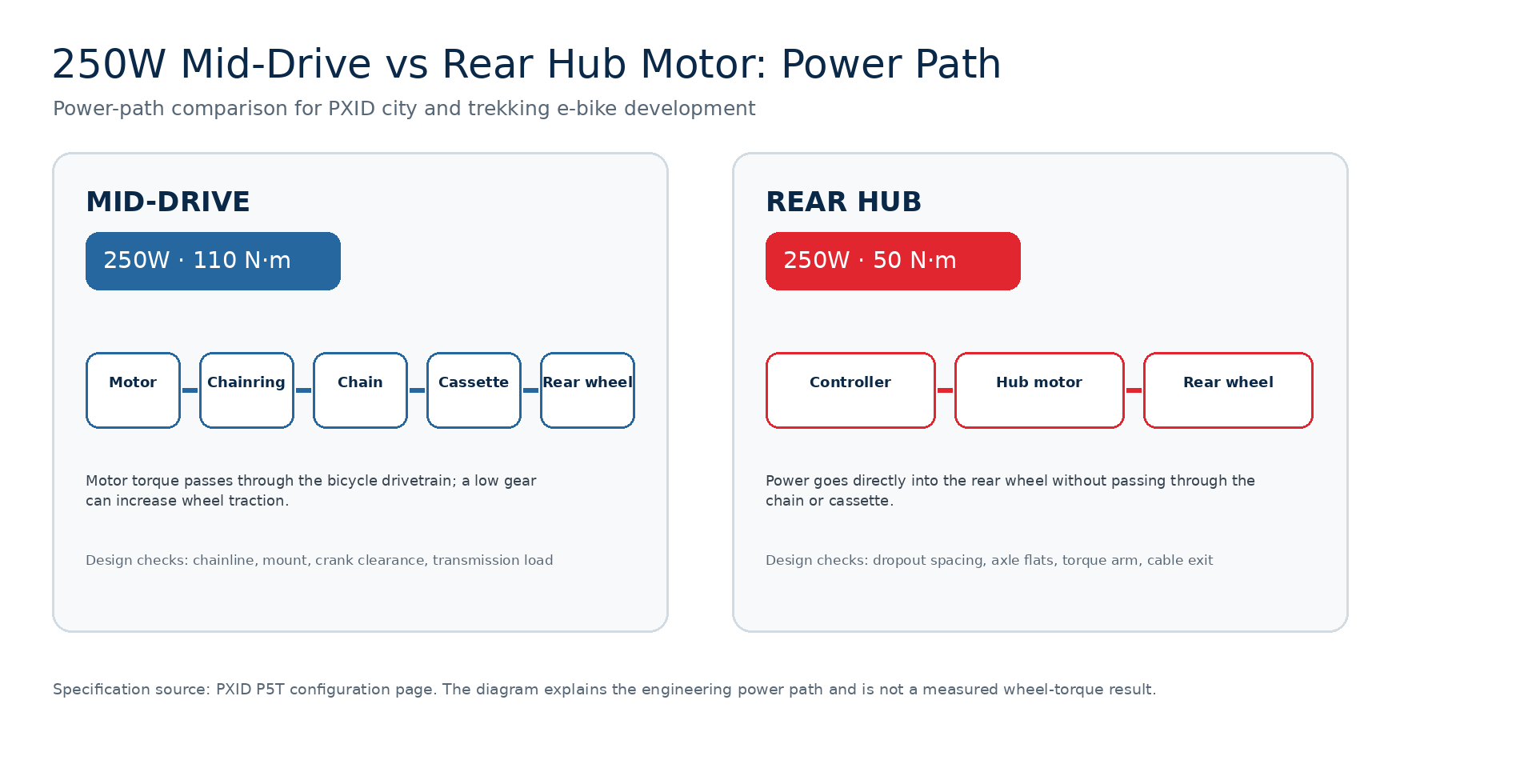

Power is the rate of doing work, while torque is rotational force. A mid-drive motor sends power through the bicycle drivetrain. In a low gear, higher motor speed can be exchanged for greater tractive force at the wheel. A hub motor drives the wheel directly, giving it a short power path, but it cannot use the bicycle cassette to multiply motor-side torque.
• For a mid-drive mount, verify the motor mounting surface, chainline, crank clearance and structural fatigue.
• For a rear hub, verify rear dropout spacing, axle flats, torque arm, disc-brake clearance and motor-cable exit direction.
• Maximum torque occurs only at particular cadences, controller currents and assist modes; it is not continuous output throughout the ride.
| Bosch explains the relationship between torque, cadence and power, noting that maximum torque is mainly used for acceleration or climbing. Bosch eBike Torque Explained |

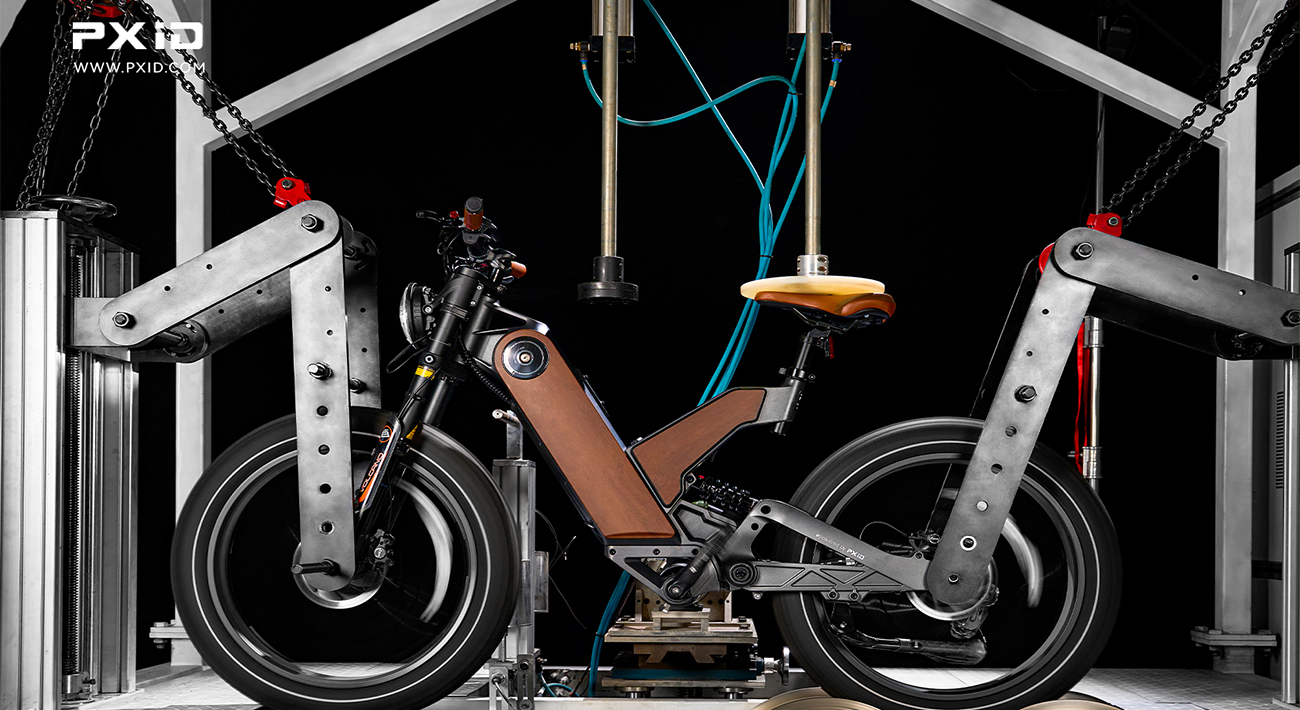

3. Fixed Test Protocol: Grade Is an Engineering Variable, Not a Regulatory Requirement
1. Total mass of bicycle + rider + payload: 120 kg.
2. Wheel: 27.5 inches; tire pressure and tire model kept identical.
3. Battery: 36 V; test starts at 80% SOC; ambient temperature 25°C.
4. Level road at 25 km/h; 5% grade at 20 km/h; 8% grade at 15 km/h.
5. Equivalent rider input, assist level and launch method kept identical.
6. Repeat each condition three times and record battery Wh, speed, motor housing temperature and controller temperature.
| Safety test framework: ISO/TS 4210-10 covers EPAC design, assembly, testing, power-management systems and electrical-safety requirements. ISO/TS 4210-10:2020 |
4. The 8% Grade Is Only a Comparison Condition: Mid-Drive Model Uses 5.5 Wh/km Less

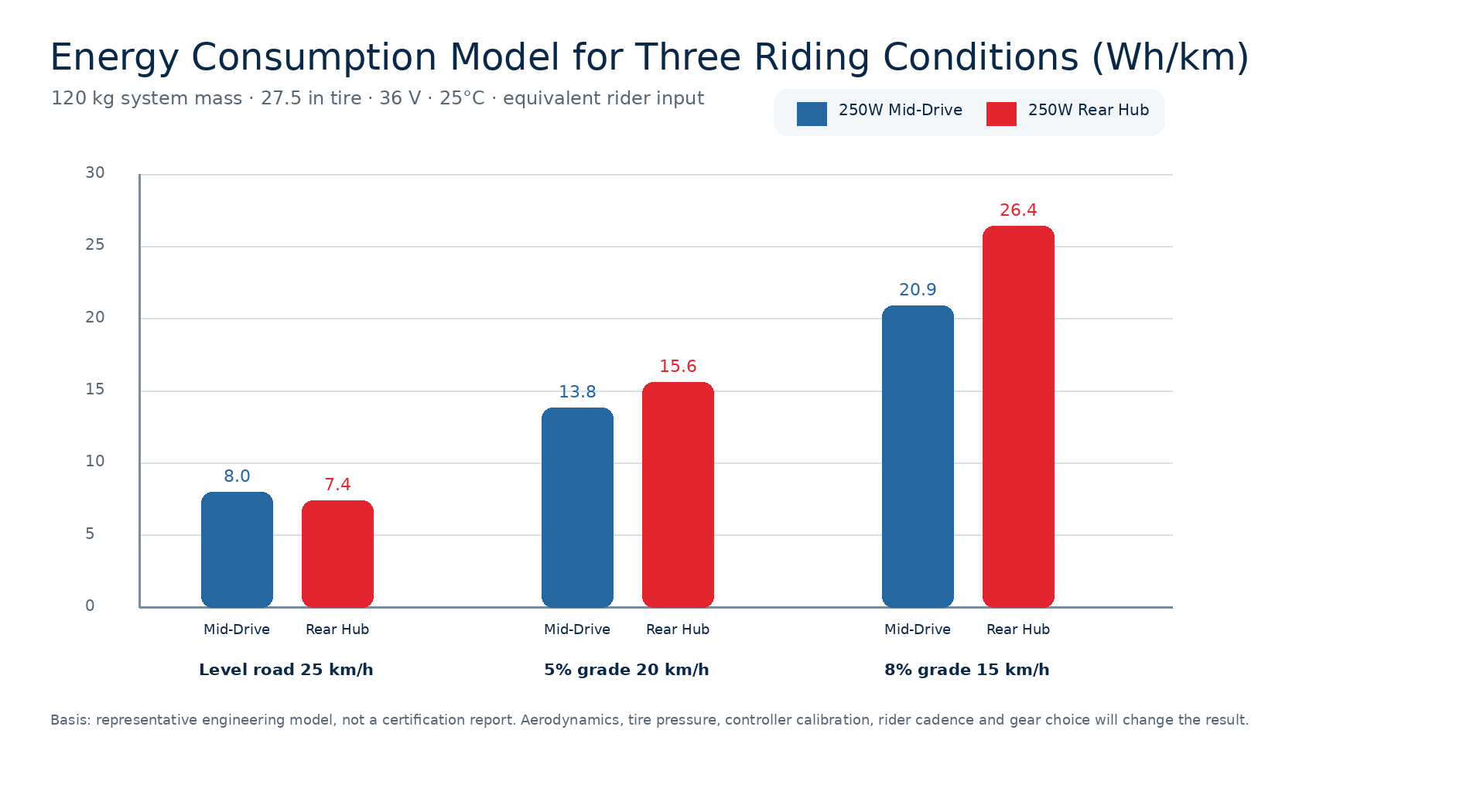

During steady level-road cruising, the rear hub motor bypasses the chain and cassette. Its modeled energy use is 7.4 Wh/km, versus 8.0 Wh/km for the mid-drive. When the grade rises to 8% and speed drops to 15 km/h, the mid-drive uses a low gear to maintain higher motor speed. Its modeled energy use is 20.9 Wh/km, compared with 26.4 Wh/km for the hub solution—a difference of 5.5 Wh/km.
|
Comparison Item |
250W Mid-Drive Motor |
250W Rear Hub Motor |
Engineering Assessment |
|
PXID P5T Published Specification |
110 N·m |
50 N·m |
Same rated power does not mean the same output characteristics |
|
Power Path |
Motor → chainring → chain → cassette → rear wheel |
Motor → rear wheel |
Mid-drive can use the bicycle gear ratio |
|
8% Grade Energy Model |
20.9 Wh/km |
26.4 Wh/km |
Prefer mid-drive for low-speed climbing |
|
Level Road 25 km/h Model |
8.0 Wh/km |
7.4 Wh/km |
Hub motor can reduce drivetrain losses during steady level-road cruising |
|
0–15 km/h Model |
5.8 s |
8.1 s |
Mid-drive launches faster in a low gear |
|
System Assembly-Time Model |
42 min |
28 min |
Hub solution has a more direct structure |
|
Drivetrain Maintenance |
Chain/cassette carry both motor and rider input |
Chain carries rider input only |
Mid-drive requires early definition of drivetrain durability grades |
5. 8% Engineering Test: 74°C and 88°C Come from Different Operating Points

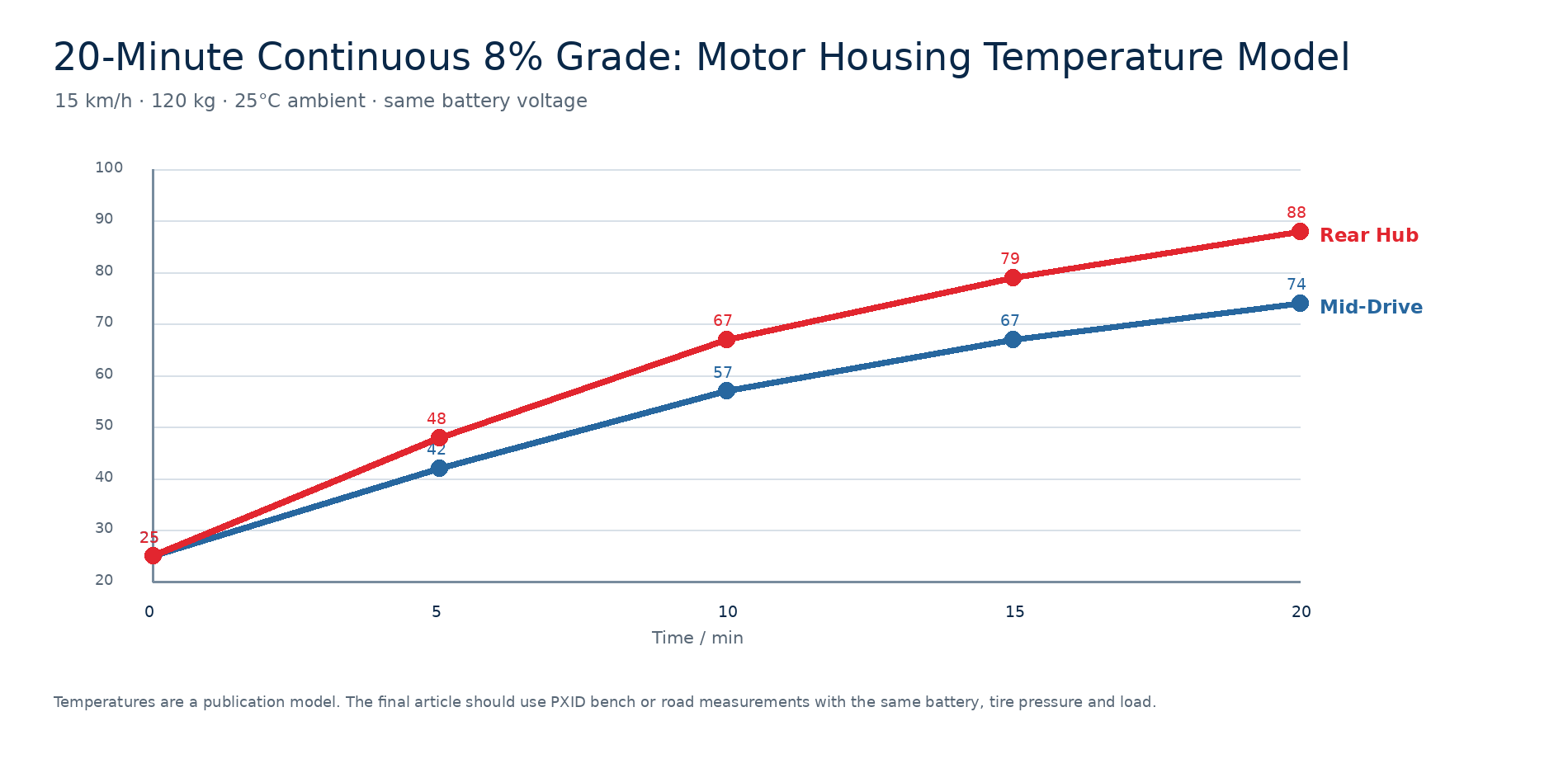

In the model, both systems start at 25°C. After 20 minutes, the mid-drive housing reaches 74°C and the rear hub reaches 88°C. This does not mean a mid-drive is “inherently cooler.” Rather, the low gear moves the mid-drive motor to a higher-speed operating region, while the hub motor experiences higher current and copper losses in the low-speed, high-load region.
• Record battery current and motor housing, controller and winding temperatures every five minutes.
• For the mid-drive test, fix the gear and cadence; for the hub test, fix the speed and controller current limit.
• Thermal-derating points, shutdown points and recovery temperatures must be documented in the controller calibration record.
6. Maintenance: Consider Chain Life and Rear-Wheel Removal Together
• Mid-drive model: inspect the chain every 500 km; chain replacement window 1,800–2,500 km; cassette 3,500–5,000 km.
• Hub-drive model: chain replacement window 3,000–4,500 km; cassette 6,000–8,000 km.
• Removing and reinstalling a hub-motor rear wheel adds about 15–25 minutes because of the motor cable, axle washers and torque arm.
• Installing and calibrating the mid-drive motor, cranks and sensors takes about 42 minutes; installing the hub wheelset, wiring harness and controller takes about 28 minutes.
• These figures are a commuter-fleet maintenance model. Mud and water, payload, shifting habits and component grade can significantly change the mileage intervals.
| Mid-drive reference specification: the official Shimano EP6 page lists 3 kg and 85 N·m, and states that it is used for e-MTB, city and trekking models. Shimano EP6 Drive Unit |
| Hub reference specification: the official Bafang H700 page lists 250W, 50 N·m and 3.2 kg for urban commuting. Bafang H700 Rear Hub Motor |
7. PXID Development Process: Freeze Regulatory and Drive-System Inputs in 10 Working Days
1. Day 1: Freeze the target country/state/province, continuous rated power, assist cut-off logic and throttle conditions.
2. Day 2: Freeze total mass, wheel size, grade, maximum speed and range targets.
3. Days 3–4: Compare torque curves, efficiency regions and thermal boundaries for mid-drive and hub solutions.
4. Day 5: Freeze the frame interface—the mid-drive mount or rear dropout spacing, torque arm and wiring-harness exit.

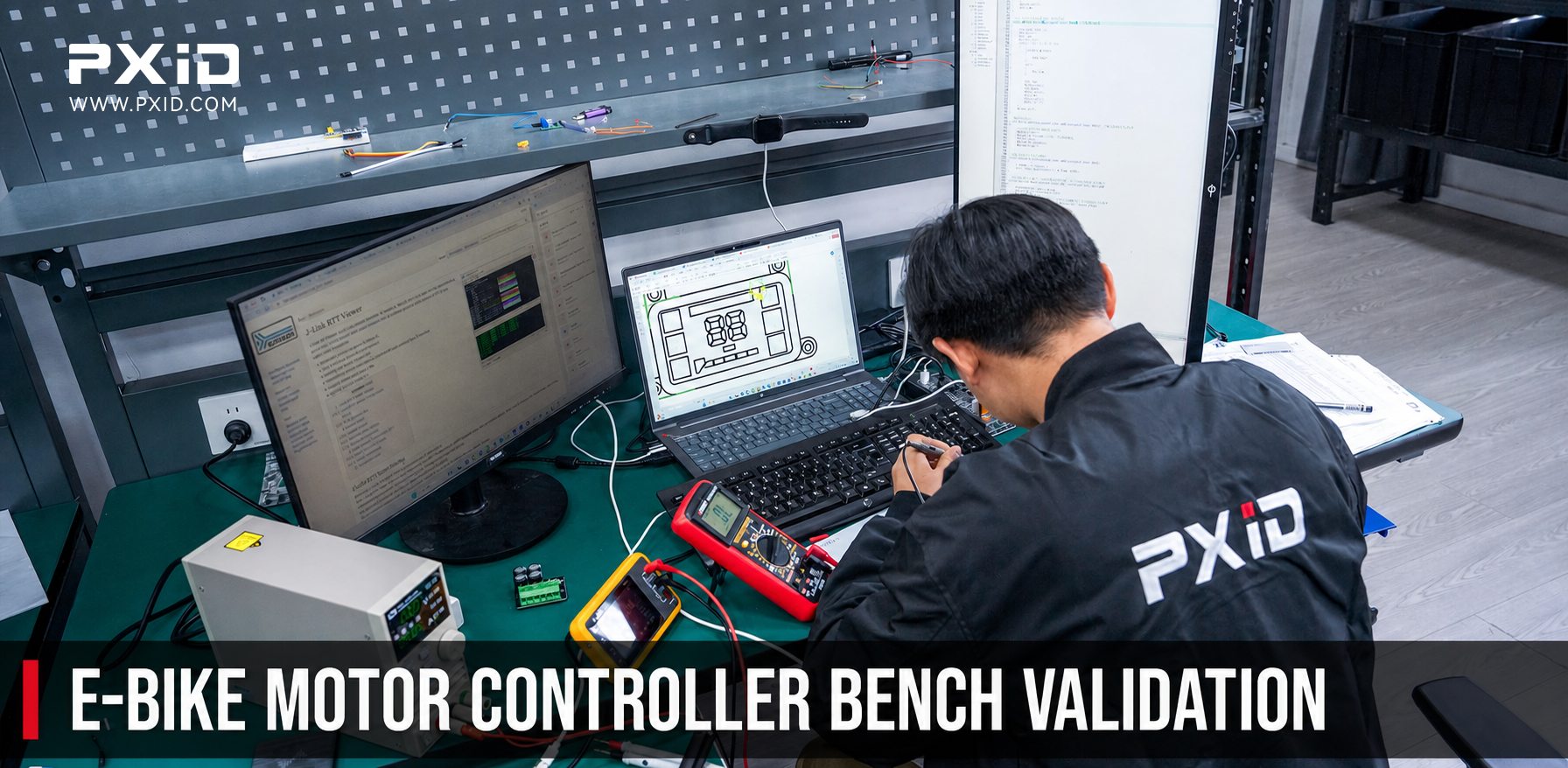

5. Day 6: Bench-calibrate launch current, current limiting, power-cut delay and thermal derating.
6. Days 7–8: On the prototype, complete regulatory assist cut-off, power-cut and launch tests, plus 0%, 5% and 8% engineering-grade tests.
7. Day 9: Disassemble and inspect the chainline, axle washers, connectors, disc-brake clearance and signs of heat rise.
8. Day 10: Release the electric-drive BOM, calibration version, test records and production control plan.
| PXID electrical-control capability: the PXID Electrical Control System page covers customization of hub and mid-drive motors, controllers and multi-battery management. PXID Electrical Control System Design |
8. Selection Matrix: Start with Regulations, Then Evaluate Load and Service Network
| Use Case | Recommended Solution | Engineering Conditions | Development Action |
|---|---|---|---|
| Steady Urban Cruising | Rear Hub | Low share of low-speed, high-load operation; load ≤110 kg | Prioritize cost control, low noise and wiring-harness assembly |
| Continuous Low-Speed, High-Load Operation | Mid-Drive | Cassette gearing is needed to maintain motor efficiency | Calibrate the torque sensor and shift protection |
| Cargo / Trailer | Mid-Drive | Low-speed, high-load operation; frequent starts | Verify the chain, cassette, mount and thermal protection |
| Natural-Feeling Assist | Mid-Drive | Cadence + torque closed-loop control required | Optimize launch ramp, power-cut delay and assist ratio |
| One Frame, Two Drive Systems | Switchable Platform | Annual volume reaches the platformization threshold | Use interchangeable mounts, dropout spacing, wiring and controller parameter packages |
FAQ: How Will Customers Actually Ask?

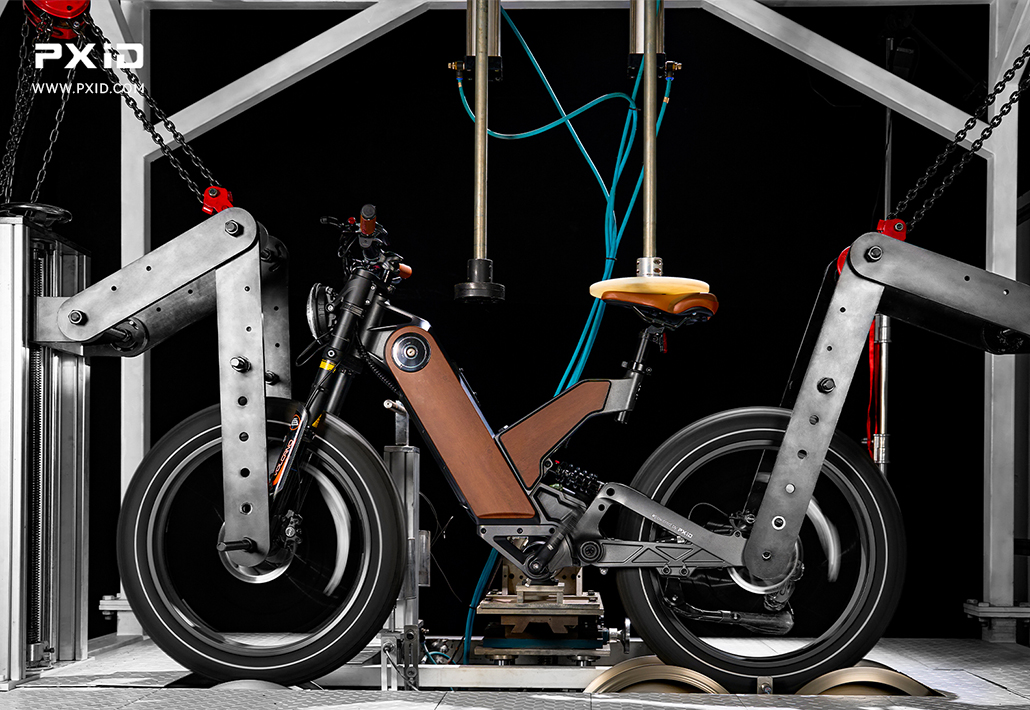

There is no legal maximum grade that applies to every 250W vehicle. Even with the same 250W nameplate, sustained climbing performance varies with total mass, wheel size, current, gear ratio, cooling and rider input. The project should specify the target grade, duration, speed and temperature-rise limit before testing.

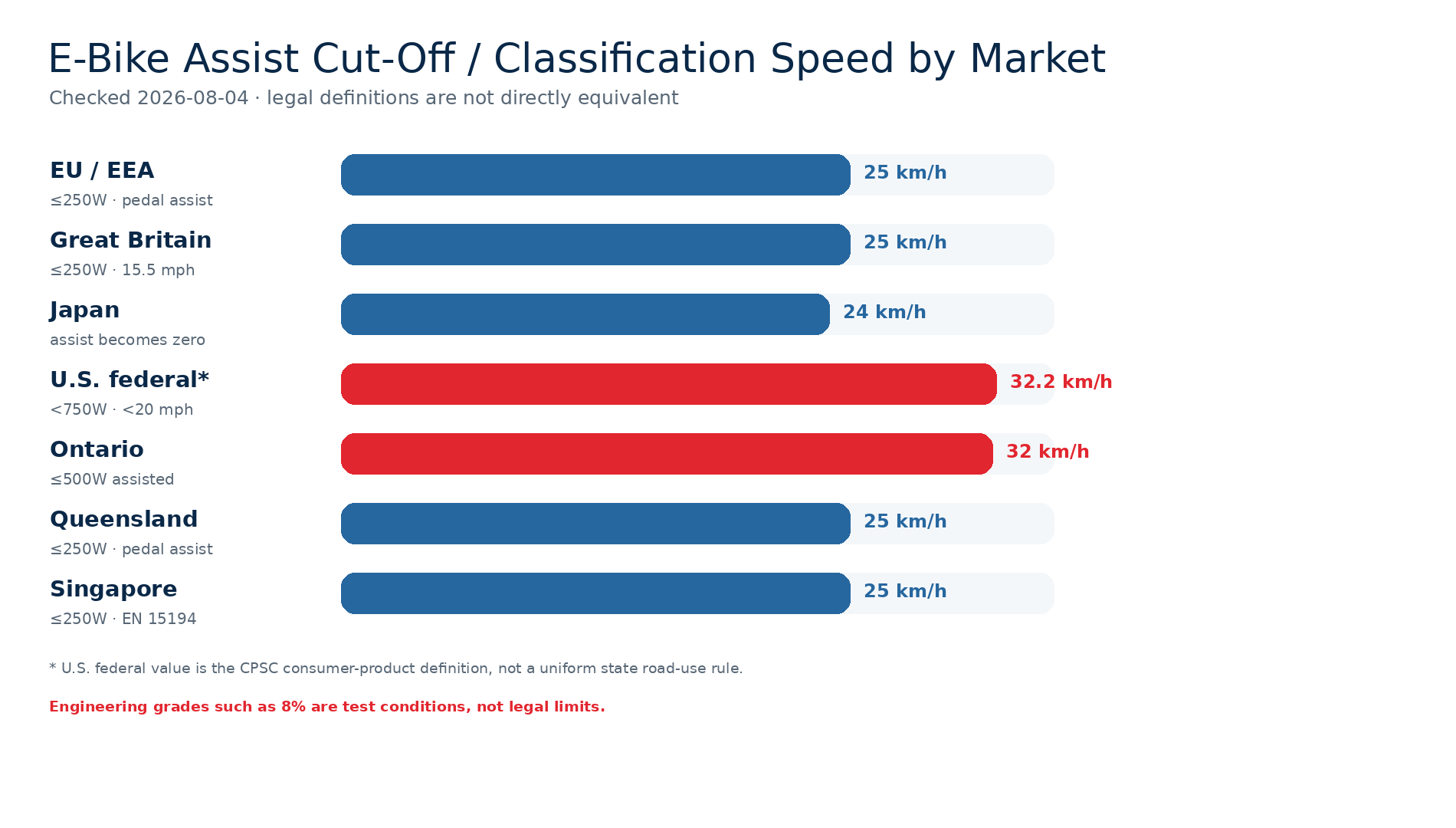

Not necessarily. Japan’s ordinary pedal-assist bicycle requirements primarily examine the assist ratio, zero assist above 24 km/h, pedal linkage and whether an independent-drive throttle is present. 250W may be an engineering specification, but the vehicle classification cannot be determined from the power label alone.
The hardware may be shared, but production parameter packages should not be used interchangeably. At minimum, separately validate the assist-taper curve, cut-off speed, power-cut logic, assist ratio, labeling and test records, and lock a distinct software version number for each market.
No. The U.S. federal CPSC definition includes conditions such as a motor below 750W and motor-only operation below 20 mph, but actual road use and the three-class system are determined by state law. A separate regulatory matrix must be created for each target sales state.
Rated power, peak torque and output speed are different parameters. A mid-drive can also use the bicycle gear ratio. Compare the torque curve, cadence/speed, controller current and tractive force at the wheel together.
No. During steady level-road cruising, the hub model in this document uses 0.6 Wh/km less. The mid-drive advantage mainly appears in low-speed, high-load conditions where a low gear is needed to maintain motor efficiency. The final conclusion must be verified on prototypes with the same vehicle mass, tire pressure and battery.
After the customer provides the target market, total mass, wheel size, speed, range and typical duty cycle, PXID can issue a missing-information checklist within 24 hours, then use a 10-working-day model to freeze the first regulatory parameter package, electric-drive BOM and prototype test plan.
Project Kickoff: Submit These Eight Inputs First
1. Target market and regulatory version.
2. Rated power, maximum assisted speed and target torque.
3. Maximum total mass of rider + bicycle + cargo.
4. Wheel size, tire, target tire pressure and brake specification.
5. Grade, single-run duration, target speed and daily repetitions on the typical route (engineering conditions, not regulatory thresholds).
6. Target range, battery voltage and capacity.
7. Annual demand, target BOM range and service-network capability.
8. Mid-drive/hub preference and whether one frame must support both drive systems.
Send Your E-Bike Duty Cycle for a 24-Hour Motor System Review
| Contact PXID: submit the grade, load, wheel size, battery and target market to receive a mid-drive/hub selection checklist. Contact PXID |
